Sign panels · lightweight and machinable
PVC Signs for Smooth Interior Panels, Routed Shapes, and Layered Displays
S2 cuts, prints, finishes, assembles, and installs expanded PVC signs for commercial interiors and selected protected applications.
Expanded PVC is smooth, lightweight, and easy to machine, which makes it useful for routed letters, directory components, displays, menu boards, dimensional layers, and short-to-medium-term signs where heavier sheet materials add no value.
Where PVC fits
Use expanded PVC when machining and low weight matter more than structural stiffness.
PVC is especially useful for interior directories, menu boards, temporary displays, routed letters, layered logos, wall panels, event graphics, point-of-use identification, and decorative components. It can provide real thickness without the weight of metal or acrylic.
It is often over-sold as an all-purpose exterior panel. Colorado sun, dark paint, large unsupported spans, tight fasteners, and temperature swings can make PVC move. S2 reserves it for projects where the exposure and support make sense.

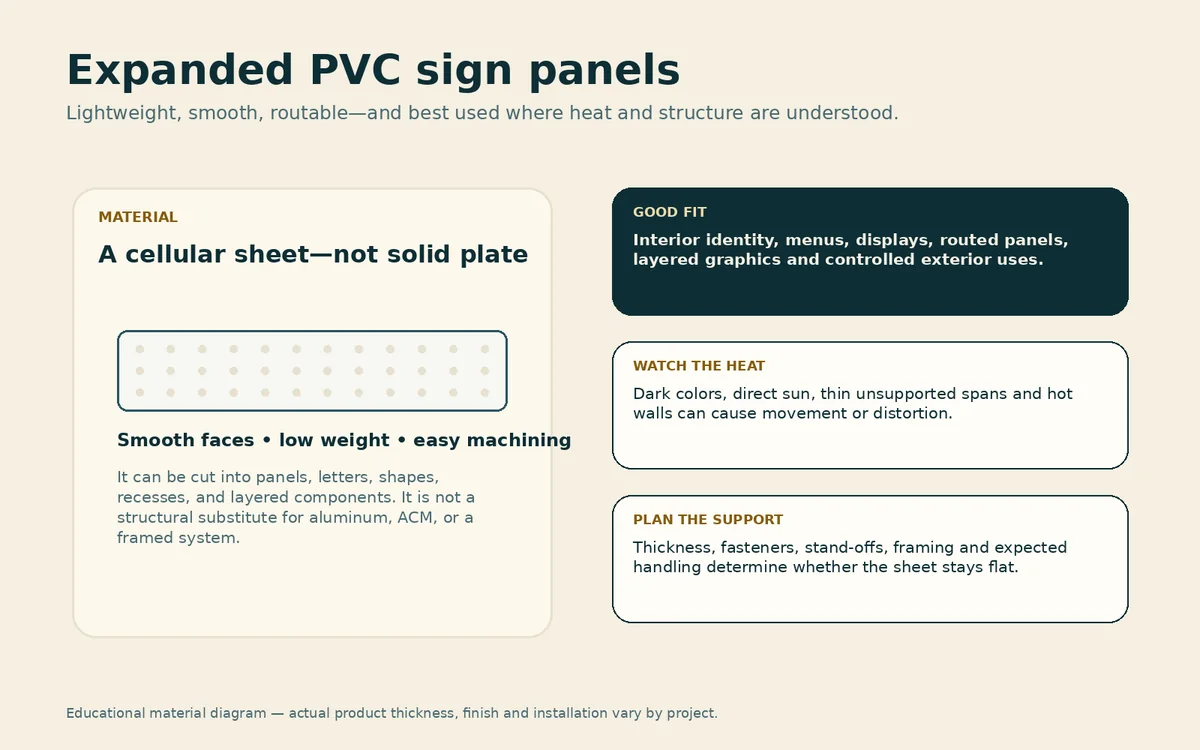

Material behavior
The cellular core makes PVC easy to machine—and easier to move with heat.
The smooth outer skins and expanded interior produce a sheet that cuts cleanly and weighs less than solid plastic. That construction is useful for routing, but it does not behave like aluminum or a structural composite panel.
Fasteners should not crush the sheet. Large panels need support. Dark surfaces absorb more heat. Adhesive and paint systems need material compatibility. Exposed edges may be sanded, filled, painted, or intentionally left visible depending on the finish standard.
Paint, printed vinyl, cut vinyl, or applied components
Smooth expanded-PVC face skin
Lightweight cellular PVC interior
Wall, backer, frame, rail, or stand-off support

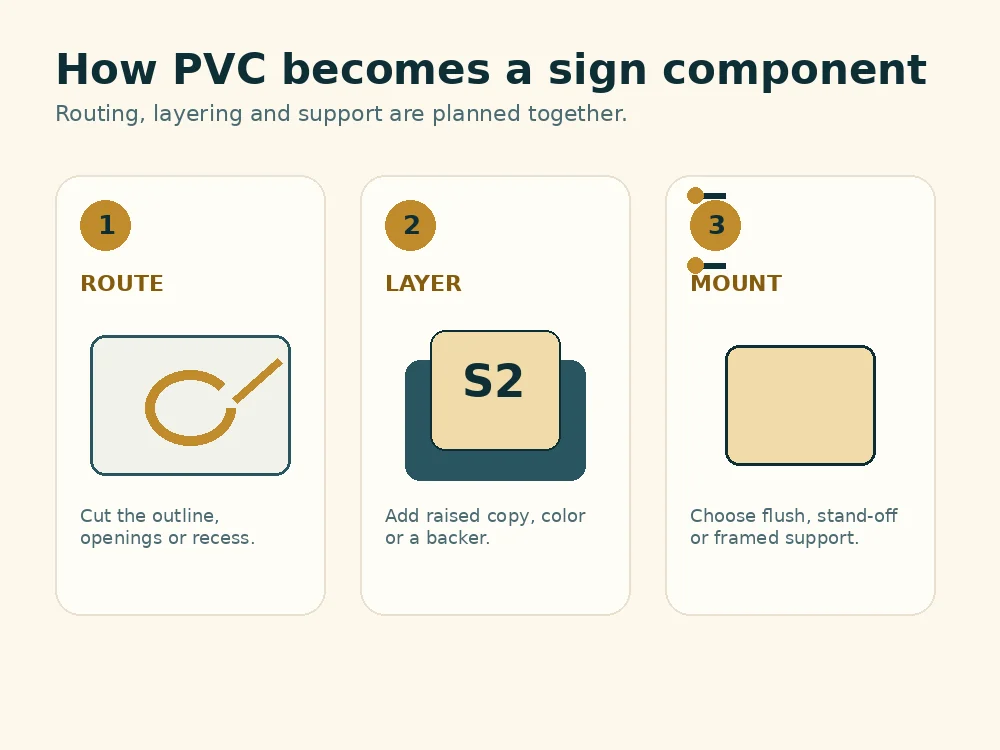

Fabrication options
PVC is most valuable when the project uses its machinability.
A flat printed rectangle may be better served by ACM. PVC becomes distinctive when it is routed, layered, shaped, pocketed, or combined with other materials.
Contour cutting
Logos, letters, shields, arrows, and custom panel outlines can be cut without metalworking weight.
Pockets + recesses
CNC machining can create inset copy, layered fields, channels, and dimensional relief.
Layered construction
Multiple sheets or attached components create depth, color separation, and shadow.
Painted finish
Compatible coatings can create brand colors and hide the cellular edge where required.
Applied graphics
Cut vinyl and printed films add detailed copy, gradients, and replaceable information.
Mixed-material assembly
PVC can combine with acrylic, metal, stand-offs, backers, and lighting when each layer has a clear job.
Exterior limits
“Water resistant” does not mean “ignore the sun and structure.”
Exterior PVC work is evaluated around heat, color, span, thickness, fastening, wind, and the cost of future replacement.
Sun + dark colors
Dark finishes absorb heat and can increase movement; the panel and coating should be chosen accordingly.
Unsupported span
Large flat sheets can bow. Frames, rails, more fasteners, or another substrate may be needed.
Fastener pressure
Over-tightening can crush or dimple the face and restrict expansion.
Wind exposure
A lightweight panel still creates wind area. The support and anchors carry that load.
Edge finish
Routed edges expose the cellular interior and may need sanding, filling, paint, or trim.
Service expectation
For long-term permanent exterior panels, aluminum, ACM, MDO, or a fabricated system may offer better value.
Project process
The drawing should show the layers, not just the front view.
Define the use
Interior, exterior, temporary, routed, layered, printed, or dimensional goals are separated.
Review the site
Wall, heat, sunlight, access, cleaning, impact, and mounting surface are evaluated.
Specify the sheet
Thickness, color, edge, paint, graphic method, support, and hardware are selected.
Prepare the file
Tool paths, pockets, small features, bridges, holes, and layer registration are resolved.
Cut + machine
Panels and components are routed, drilled, sanded, and test fitted.
Finish + graphic
Paint, film, printing, lettering, or layered pieces are applied in sequence.
Assemble
Backers, stand-offs, rails, frames, and dimensional parts are aligned and secured.
Install
The finished system is mounted without over-stressing the lightweight material.
Price + timing
The routing time can matter more than the sheet price.
- Panel size and PVC thickness
- Number of routed shapes or layers
- Pockets, bevels, recesses, and small details
- Edge sanding, filling, and paint
- Printed or cut-vinyl graphics
- Backers, stand-offs, rails, and frames
- Interior protection and installation access
- Exterior support and wind exposure
- Quantity and repeatability
- Packaging, delivery, and installation
Common questions
PVC signs, routing, heat, and exterior judgment.
What is expanded PVC?
Expanded PVC is a lightweight rigid sheet with a smooth surface and a cellular interior. It is different from plumbing pipe and from solid PVC plate. Sign shops use it for printed panels, routed shapes, dimensional layers, displays, and interior identification.
Is PVC good for outdoor signs?
It can work in selected exterior applications, especially smaller, lighter-colored, well-supported signs with realistic service expectations. Heat, dark colors, direct sun, unsupported spans, and repeated temperature change can cause movement or bowing, so ACM, aluminum, or MDO may be a better long-term choice.
Can PVC be routed into letters and shapes?
Yes. It machines easily and can hold profiles, pockets, beveled edges, and layered shapes. Very thin features, weak bridges, and unsupported projections still need enough material to remain durable.
Can PVC be painted?
Yes, with compatible surface preparation and coatings. Paint selection should account for adhesion, flex, exterior exposure, and heat absorption. Dark exterior colors require special caution.
Can graphics be applied to PVC?
Yes. Printed vinyl, cut vinyl, paint, and direct graphic methods may be appropriate depending on the grade and application. The surface should be clean, smooth, and compatible with the selected film.
Is PVC waterproof?
The sheet does not absorb water like untreated wood, but that does not make every PVC sign suitable for every exterior environment. Heat, fastening, wind, surface finish, and support remain important.
How is a PVC sign mounted?
Methods include adhesive, concealed studs on attached components, screws with washers, stand-offs, frames, backers, rails, and mechanical clips. Larger panels need support that prevents bowing.
When should I choose ACM instead?
ACM is often better for larger flat exterior panels, long unsupported spans, permanent post systems, and applications where exterior flatness matters more than routing depth or low weight.
Start with the basics
Send the design and where it will live.
The interior or exterior environment tells us whether PVC is a smart choice or merely the lightest one.
- Project address or room
- Wall or display photo
- Approximate finished size
- Logo or exact copy
- Interior or exterior use
- Desired depth or routed effect
You do not need to identify the exact material or vinyl type before contacting us. The address, photos, goal, dimensions, and deadline are enough to begin.
Attach photos, logos, measurements, landlord criteria, and project documents above. Larger or additional files may also be emailed to hello@s2signs.com.
Page last reviewed 2026-08-04.
