Solid Aluminum Panels for Signs That Need Real Metal
S2 designs, finishes, permits, and installs solid aluminum sign panels for commercial properties across Colorado.
Aluminum is especially useful when exposed edges, direct fastening, reflective graphics, weather resistance, or a thinner all-metal panel matters more than the stiffness-to-weight advantage of ACM.
When solid metal wins
Use aluminum when the edge, fastening, or film system benefits from metal all the way through.
Solid aluminum is a dependable choice for parking signs, property rules, building identification, directional signs, wall panels, equipment labels, reflective signs, and smaller freestanding panels. It is corrosion resistant, comparatively light, and compatible with a wide range of painted and vinyl finishes.
It is not automatically the best panel simply because it is metal. For a large flat printed sign supported continuously by a frame, ACM may provide more stiffness for less weight. For an illuminated face, acrylic or polycarbonate may be the correct optical material. The choice should follow the installation.
Panel construction
Thickness and support work together.
A thin sheet can perform well when its edges are retained or its face is supported. The same sheet can oil-can, vibrate, or bend when stretched across a large open span. Increasing metal thickness helps, but framing, return folds, ribs, rails, and fastener spacing may be the smarter way to control a larger panel.
Holes and slots need enough edge distance. Dissimilar fasteners should be isolated when corrosion is a concern. Exposed edges may remain natural, be deburred, eased, painted, hemmed, folded, or hidden inside a frame.
Printed, cut, or reflective graphic layer
Prepared solid aluminum panel
Frame, rail, wall, or post support behind the panel
Face options
The surface finish determines what the customer sees—and what weather reaches.
Aluminum can serve as a painted architectural face, a substrate for applied graphics, or the metal body behind dimensional components.
Painted aluminum
Strong for exact brand colors, architectural sheen, exposed edges, and fabricated details.
Printed vinyl + laminate
Efficient for full-color graphics, photographic content, gradients, and changeable commercial messages.
Cut vinyl
Crisp for solid-color logos, rules, hours, arrows, regulatory copy, and repeatable property standards.
Reflective sheeting
Returns directed light toward drivers or pedestrians for parking, safety, traffic, and nighttime identification.

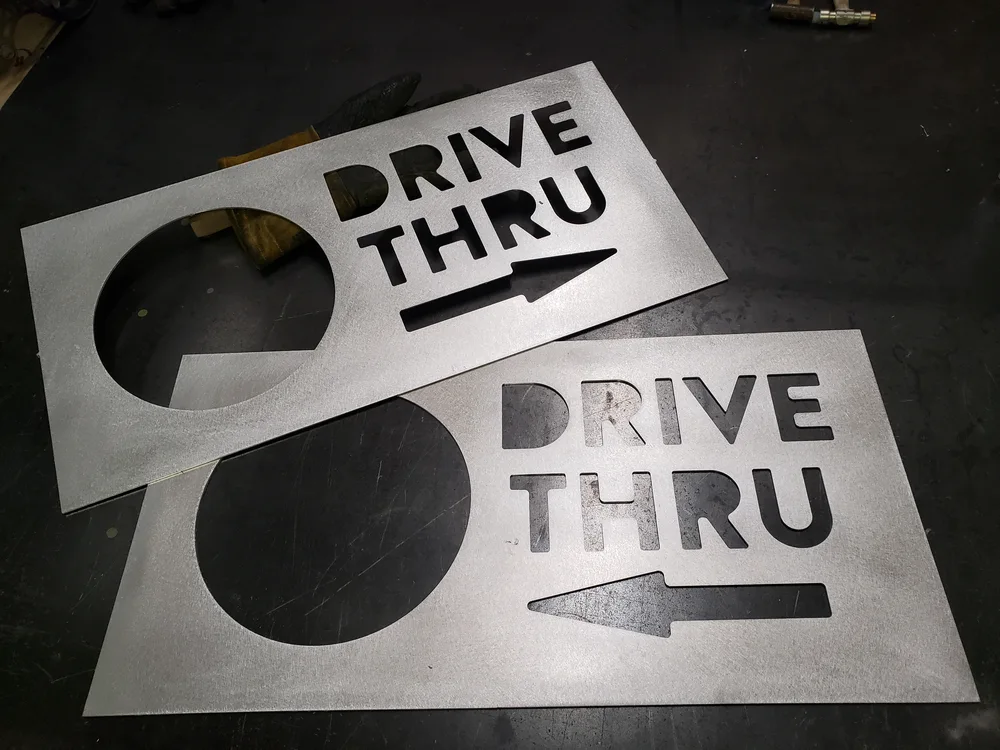

Routed or cut shapes
Panels can be contour cut, pierced, slotted, or combined with dimensional layers when the design justifies it.
Replaceable graphic face
A sound metal panel may sometimes be stripped and re-faced, depending on coating and surface condition.
Mounting
The panel should not become the structural frame by accident.
The support system needs to control wind, vibration, thermal movement, water, and service access.

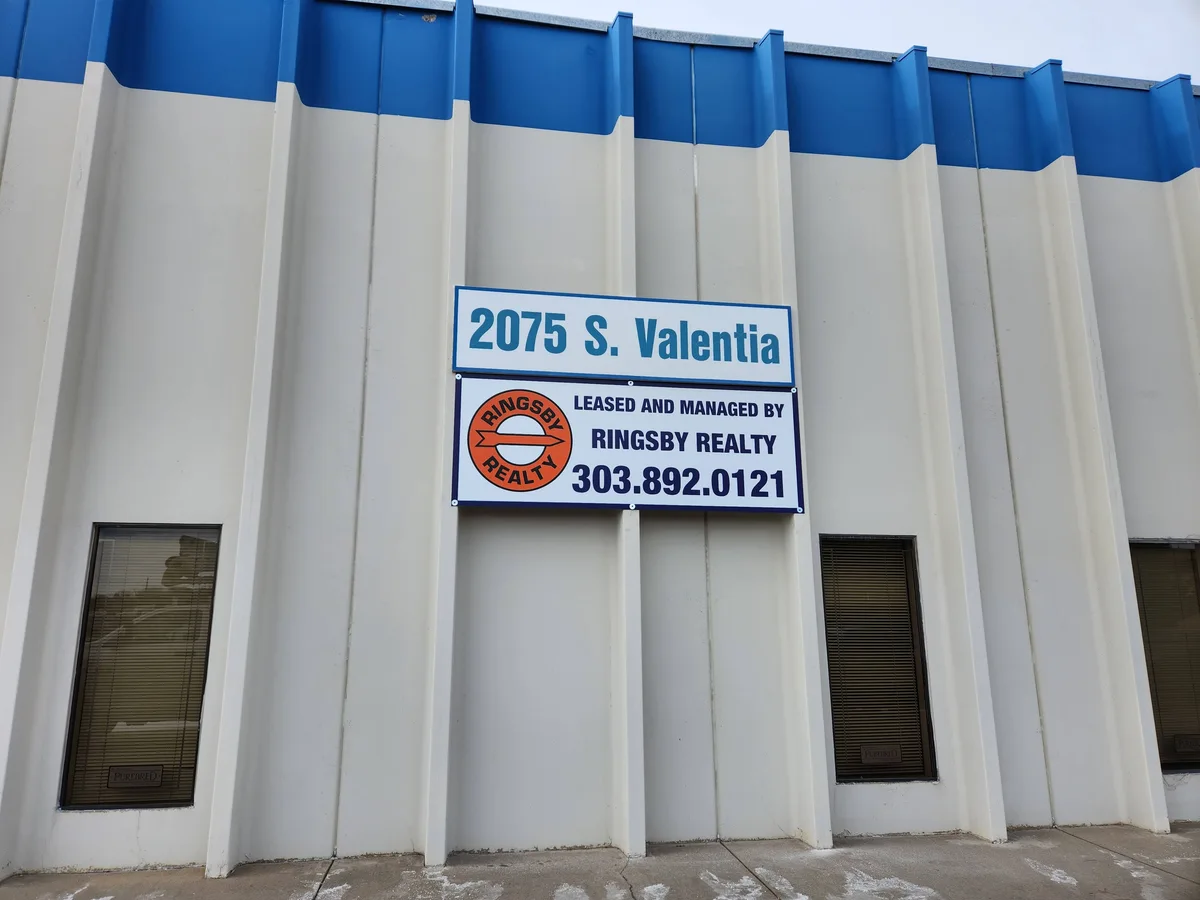

Direct wall fastening
Appropriate anchors and spacing keep the panel flat while protecting the wall and graphic face.
Stand-offs
Create shadow and separation for smaller architectural panels, provided panel stiffness and hardware are adequate.
Retained frame
A perimeter frame protects edges, controls flatness, and may allow future panel replacement.

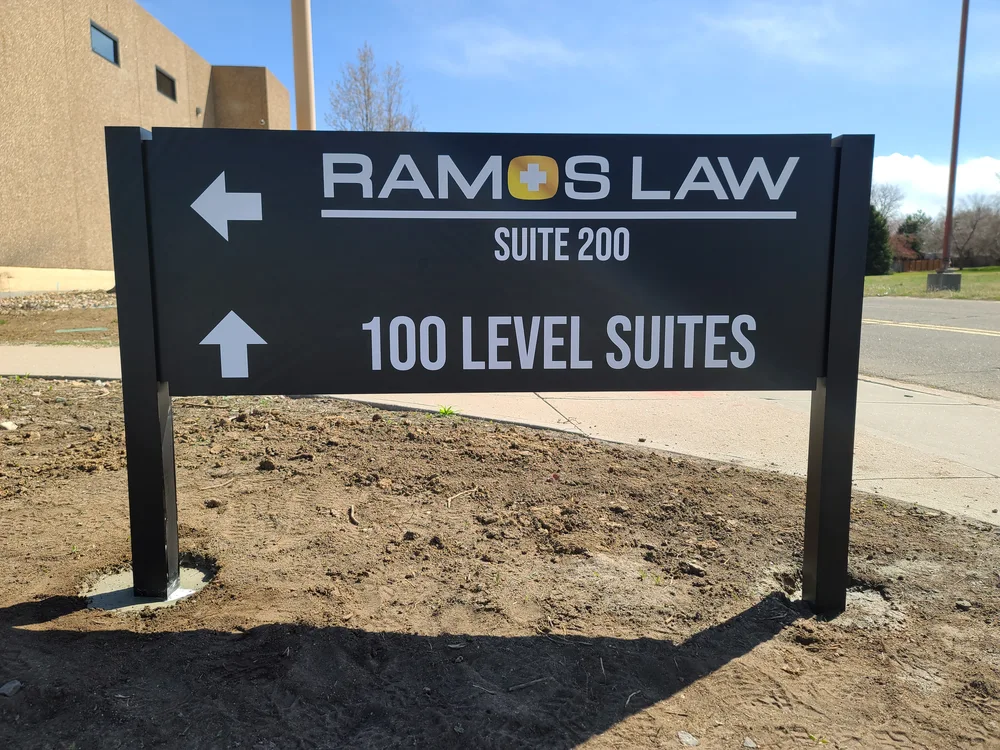

Posts and rails
The panel attaches to a wood or metal structure designed for size, height, wind, and grade.
Hanging bracket
Bracket, attachment points, panel balance, and swing control must be designed as one system.
Cabinet or monument insert
The aluminum face can serve as a replaceable component inside a larger fabricated structure.
Project process
The finished sign is more than a cut rectangle.
Define use
We confirm message, location, size, viewing distance, exposure, and expected service life.
Survey support
Wall, frame, posts, fastener access, edges, clearances, and permit limits are reviewed.
Specify metal
Thickness, temper where relevant, bends, holes, edge treatment, finish, and support are documented.
Prepare graphics
Copy size, contrast, print, cut film, reflective film, and laminate are matched to the use.
Approve + permit
Artwork and mounting move through required property and municipal review.
Fabricate
The panel is cut, drilled, deburred, formed, painted, or prepared for graphics.
Finish + assemble
Graphics, hardware, retainers, rails, or layered components are applied and inspected.
Install
The complete panel is aligned, anchored, sealed where needed, cleaned, and documented.
Price + timing
Metal thickness is only one line in the estimate.
- Panel width, height, shape, and quantity
- Aluminum thickness and forming
- Paint, pretreatment, and finish sheen
- Printed, cut, or reflective graphics
- Single- or double-sided production
- Holes, slots, bends, hems, and edge work
- Frames, rails, stand-offs, posts, or brackets
- Wall anchors and access equipment
- Permits and engineering when required
- Removal or re-use of an existing panel
Common questions
Solid aluminum sign panels in practical terms.
Is an aluminum sign panel solid metal?
Yes. Unlike ACM, a solid aluminum panel does not contain a plastic core. The metal thickness is visible at the edge and the panel can accept appropriate holes, fasteners, bends, or formed details.
Does aluminum rust?
Aluminum does not rust like steel, but its surface can oxidize and finishes can still weather. Paint, pretreatment, film selection, cut edges, dissimilar-metal contact, and the actual exposure all affect long-term appearance.
When is aluminum better than ACM?
Solid aluminum is often preferred for parking, regulatory, reflective, smaller directional, exposed-edge, formed, or directly fastened signs. ACM is often more efficient for larger flat graphic panels where light weight and stiffness are the priority.
Can aluminum signs be reflective?
Yes. Reflective sheeting can cover the entire panel or selected graphics. The film grade, background, copy, orientation, and source of approaching light should be selected for the application.
Can an aluminum panel be double sided?
Yes. It can be finished on both faces and installed in a frame, suspended system, post system, or other double-sided structure. The support must account for panel size and wind.
How thick should an aluminum sign be?
Thickness depends on dimensions, support spacing, exposure, holes, bends, and whether the panel is framed. We specify it from the complete installation rather than using one thickness for every project.
Do aluminum wall signs need permits?
Exterior wall and freestanding signs may require permits regardless of illumination. S2 checks the jurisdiction, property criteria, size, and mounting before the final production plan.
Can old aluminum panels be re-faced?
Sometimes. The panel must be flat, sound, cleanable, and compatible with the new finish. Severe corrosion, bends, extra holes, failing coatings, or multiple old graphic layers may make replacement the better choice.
Start with the basics
Send the location and finished size.
We can determine whether solid aluminum, ACM, or another panel will perform better after seeing the support and exposure.
- Project address
- Wall, frame, or post photo
- Approximate panel dimensions
- Single- or double-sided use
- Graphic or reflective requirement
- Target date
You do not need to identify the exact material or vinyl type before contacting us. The address, photos, goal, dimensions, and deadline are enough to begin.
