Dimensional signs · reverse-pan letters
Fabricated Metal Letters With Real Depth and Architectural Shadow
Fabricated metal letters are hollow reverse-pan letter bodies with a face and returns—usually smaller and quieter than typical channel letters, but built with the same core fabrication logic.
They can remain non-illuminated, stand off the wall for stronger shadow, or be engineered for halo illumination when the project has a workable path to power.
A product most buyers do not know by name

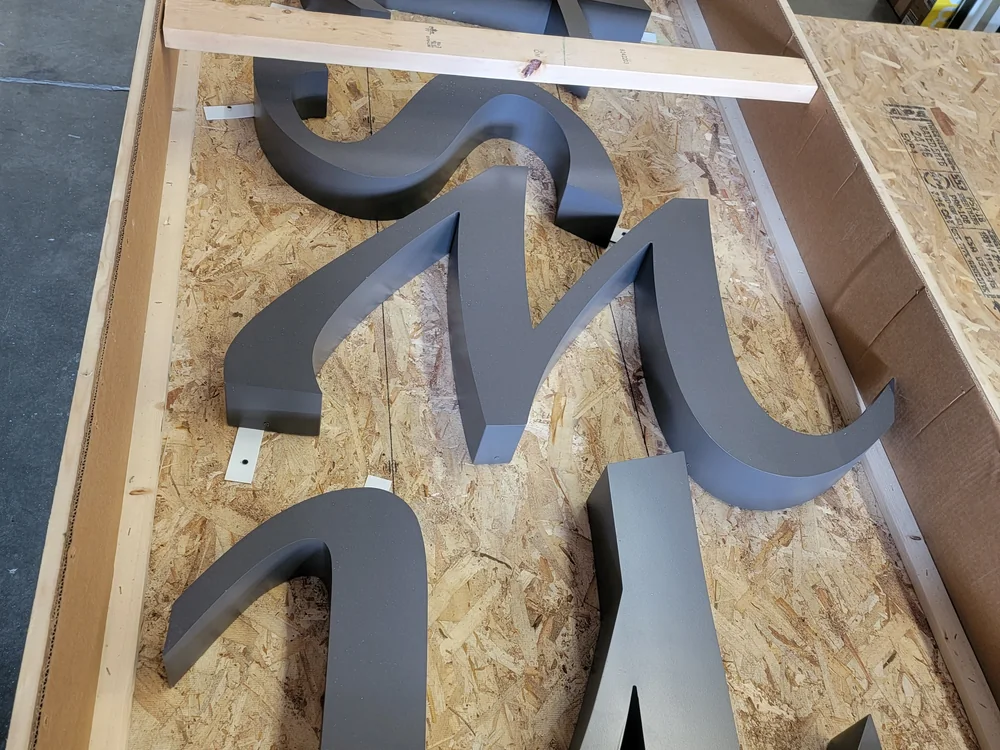

Think of a fabricated metal letter as a reverse pan built for dimensional presence.
A flat-cut letter gets all of its depth from solid material thickness. A fabricated letter uses a relatively thin metal face and return to create a hollow body. That makes deeper letters practical without turning each character into a heavy block of solid metal.
The result can be refined and restrained at small scale, or strongly architectural at larger scale. Fabricated letters are useful when the customer wants a deeper edge, stronger shadow, premium metal construction, concealed hardware, or the possibility of adding a halo.

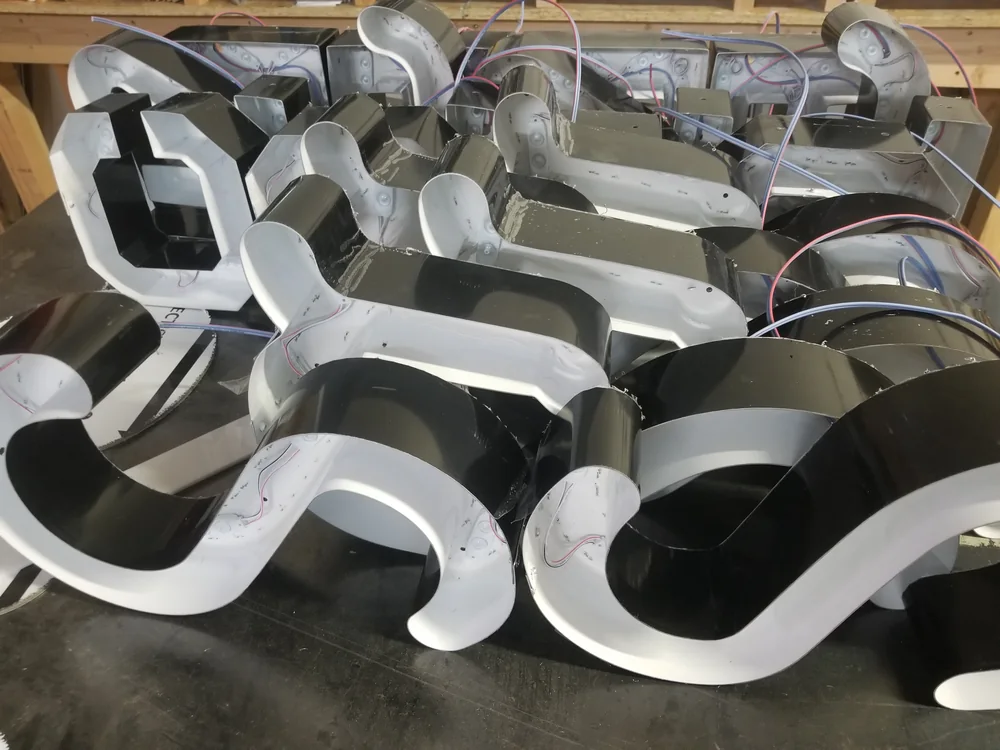

Construction
The face, return, back, seam, and finish all influence the final line.
Face
The front surface establishes flatness, visible finish, and the exact silhouette. Thin faces need proper reinforcement and handling to avoid oil-canning or distortion.
Returns
The side walls create depth. Their width affects shadow, scale, seam placement, mounting, and whether lighting components can fit.
Back
Non-lit letters may use tabs, rails, partial backs, or removable backs. Halo-lit letters require a translucent or open-back strategy designed around LEDs and service.
Corners and seams
Tight scripts and sharp details may require welded corners, formed sections, segmented returns, or design refinement to keep the construction clean.
Finish
Painted aluminum is common. Decorative metals may be brushed, satin, polished, patinated, or protected according to the project.
Mounting provisions
Studs, clips, rails, stand-offs, wiring exits, and removable components are built into the letter before the finish is completed.
Optional illumination
Lighting changes the product from a metal object into an electrical system.
A non-illuminated fabricated letter may only need structural attachment and weather management. A halo-lit letter also needs LED placement, a translucent back or controlled opening, power supplies, low-voltage wiring, stand-off distance, wall reflectance, penetrations, drainage, service access, UL labeling, and coordination with a licensed electrician for the building-side circuit and final power termination.
S2 performs the sign-side and low-voltage work. We do not install new breakers, service electrical panels, or make final hookups to new building power. When those tasks are needed, we coordinate the electrician.
Mounting
Depth makes alignment and wall interaction more visible.
Individual stud mount
Each letter attaches from concealed studs or clips. This produces a clean architectural result but requires accurate patterns and more wall penetrations.
Controlled stand-offs
Spacers create a consistent shadow and are required for a true halo-lit effect. Every letter must sit at the same distance.
Rails or raceways
A shared support can reduce penetrations, carry wiring, simplify service, and solve difficult wall construction, though it becomes part of the visual design.
Backer panel
A backer creates contrast, carries small pieces, bridges joints, and may become the cleanest way to integrate lighting and access.
Through-wall fastening
Interior access can support strong concealed attachment, but it must be coordinated before finished walls block the back side.
Structural review
Large or unusually deep fabricated letters may need additional support, engineering, or wall verification beyond a standard letter installation.
Project process
Deep letters require fabrication decisions before the first return is formed.
Translate the logo
S2 reviews strokes, corners, script connections, small pieces, depth, and the practical return path.
Survey the wall
Scale, sign allowance, wall structure, access, wiring path, finish, and viewing distance are documented.
Choose lit or non-lit
The decision changes the back, depth, standoffs, power, service access, permit package, and UL requirements.
Engineer the build
Face gauge, return, seams, reinforcement, backs, clips, studs, drainage, paint, and installation pattern are specified.
Fabricate the bodies

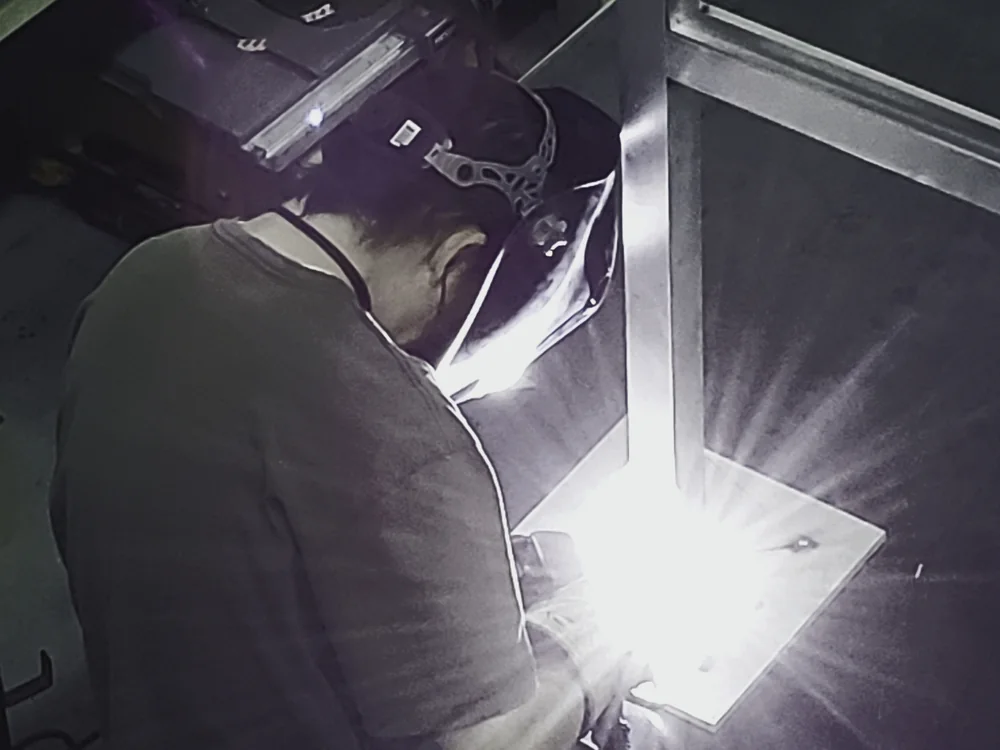

Faces and returns are cut, formed, joined, dressed, checked for flatness, and prepared for finishing.
Finish + assemble
Paint or decorative finish is completed; backs, hardware, and any sign-side lighting are installed and tested.
Permit + coordinate
S2 handles sign permitting where needed and coordinates the electrician if building-side power work is required.
Install + inspect
Letters are aligned, anchored, spaced, sealed, wired when applicable, tested, and inspected from the intended viewing distance.
Price + timing
Fabrication cost follows perimeter and complexity as much as face area.
- Letter count, height, and total perimeter
- Stroke width and script complexity
- Return depth and metal gauge
- Paint or decorative-metal finish
- Number and placement of seams
- Backs, clips, studs, and service panels
- Non-lit versus halo-lit construction
- LEDs, power supplies, wiring, and UL labeling
- Backers, rails, or raceways
- Permit, access equipment, and wall conditions
Common questions
Fabricated metal letters, reverse pans, and lighting boundaries.
Are fabricated metal letters the same as channel letters?
They use closely related construction: a face with returns creates a hollow letter body. In everyday sign language, a fabricated letter becomes a channel-letter project when it is engineered and wired as an illuminated electric sign. Non-illuminated reverse-pan letters remain a dimensional-sign product.
Why choose fabricated letters instead of thick flat-cut metal?
Fabrication can create much greater depth without the weight and material cost of cutting the entire letter from solid plate. It also allows larger components, concealed mounting features, removable backs, and space for halo-lighting components when needed.
Can fabricated metal letters be made small?
Yes, within the limits of the letter stroke, return depth, bend radius, seams, mounting, and service access. Small fabricated script and tight logo details require careful simplification because every return must physically fit around the shape.
Can fabricated metal letters be halo lit?
Yes, when the letter depth, translucent back, LED layout, wall reflectance, stand-off distance, power path, and service access are designed for it. If lighting is central to the project, the Halo-Lit / Reverse-Lit Channel Letters page carries the full electrical treatment.
What metal is normally used?
Painted aluminum is the most common because it is light, corrosion resistant, weldable, and suitable for complex shapes. Stainless, brass, bronze, and copper fabricated letters are possible in selected projects but require different forming, finishing, joining, and budget considerations.
How are seams handled?
Seams are placed, welded, bonded, filled, dressed, and finished according to the material and visibility. The goal is not merely to close the letter body; it is to keep faces flat, returns consistent, corners clean, and the finish stable.
Can fabricated letters mount to a backer?
Yes. A backer can reduce wall penetrations, bridge irregular surfaces, support lighting, carry wiring, create contrast, or allow the entire sign to be installed as a coordinated assembly.
Do non-illuminated fabricated letters require permits?
Exterior wall signs are commonly regulated whether illuminated or not. S2 reviews sign area, projection, placement, landlord criteria, mounting, and permit requirements for the project address.
Start with the basics
Tell us how deep the sign should feel.
A wall photo and logo let us determine whether the right answer is thick flat-cut metal, a fabricated reverse pan, or a fully illuminated halo-lit letter.
- Vector logo
- Project address and wall photo
- Desired depth or visual style
- Lit or non-lit preference
- Available power information, if known
- Target completion date
You do not need to identify the exact product before contacting us. The address, logo, deadline, and desired look are enough to begin.
