Dimensional signs · acrylic letters
Flat-Cut Acrylic Letters for Color, Clarity, and Layered Depth
S2 designs, machines, finishes, and installs acrylic dimensional letters and logos for interior and exterior commercial spaces.
Acrylic can be opaque, clear, frosted, painted, printed, layered, flush mounted, or stood away from the wall. Its value is not “plastic letters”—it is controlled color and depth with precise fabrication.
Where acrylic works
Acrylic is strongest when color and layering matter.
Unlike metal, acrylic can be transparent, translucent, frosted, deeply colored through the material, or built in multiple layers. That makes it particularly useful for lobby signs, medical and professional offices, retail interiors, suite identity, wall logos, and brand marks that need more color than a natural metal finish provides.
Acrylic options
The face, edge, back, and layer do not have to match.
Acrylic becomes far more useful when it is treated as a family of optical and structural materials rather than one generic sheet.
Opaque color
The color runs through the sheet. Scratches and edges behave differently than surface-painted or printed treatments.
Clear acrylic
Useful for backers, spacers, layered logos, polished edges, and mounting that appears to float off the wall.
Frosted or matte
Reduces glare and fingerprints while softening the edge and making clear material more visible against the wall.
Painted acrylic
Supports custom colors and coordinated faces or edges. Paint location and preparation affect durability and appearance.
Printed or vinyl-faced
Adds gradients, patterns, photographic detail, or exact graphic treatments when solid sheet color is not enough.

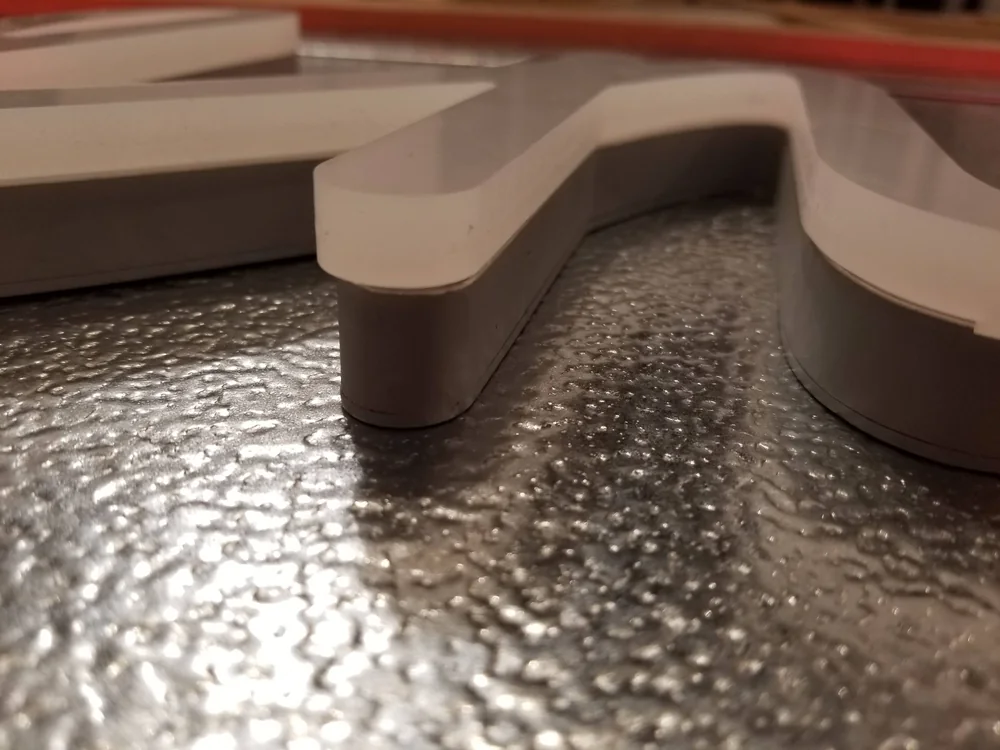

Layered construction
Two or more pieces create borders, outlines, drop shadows, dimensional color separation, and stronger mounting areas.
Design for fabrication
The logo may need small changes to become a strong physical object.
Very fine strokes can flex or break. Tiny counters may not machine cleanly. Separate dots, accents, and script connections need enough area for mounting. Sharp interior corners are limited by the cutting tool, while polished edges and clear layers reveal imperfections that an opaque face would hide.
S2 checks the actual letter height and stroke width—not only the overall sign width. We may thicken a line, join a fragile piece, simplify a tiny detail, add a backer, or change the layer strategy while preserving the character of the brand.
The best dimensional-logo revision is one the customer does not notice as a compromise. It simply looks correct at full size and survives handling and installation.
Mounting + wall interaction
Clear material makes the mounting strategy especially visible.
Flush mount
Letters sit close to the wall using concealed studs, adhesives, or a combination appropriate for the material and substrate.
Studs with spacers
A controlled gap creates shadow and makes thin letters feel more dimensional while preserving concealed attachment.
Decorative stand-offs
Visible hardware can support a clear acrylic backer and intentionally become part of the lobby-sign design.

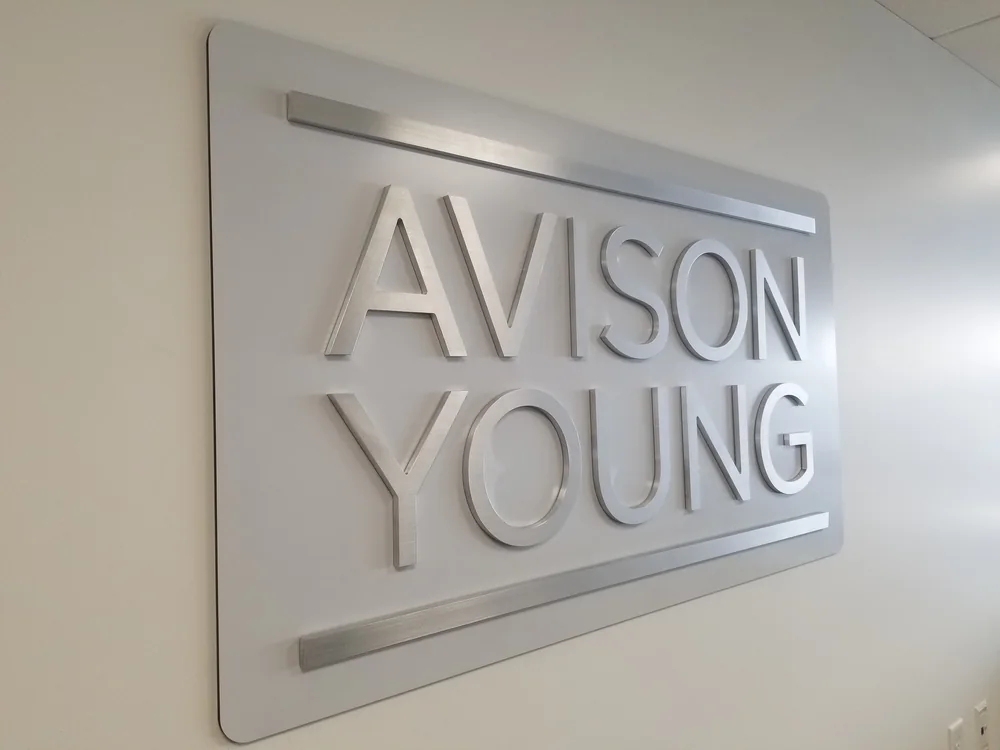

Backer panel
A single backer carries small pieces, provides contrast, reduces wall penetrations, and simplifies future relocation.
Layer-to-layer bonding
Adhesives, mechanical fasteners, and concealed registration features keep multiple acrylic layers aligned.
Pattern installation
A full-size template controls letter spacing and prevents small components from drifting during field installation.
Project process
From vector art to aligned acrylic components.
Define the environment
Interior or exterior, wall material, lighting, cleaning, traffic, and viewing distance set the practical limits.
Prepare the artwork
S2 reviews strokes, counters, small pieces, color separations, and layer relationships.
Choose the sheet
Material type, thickness, clarity, color, finish, paint, print, and UV exposure are specified.
Plan the attachment
Studs, spacers, adhesives, backers, stand-offs, and access behind the wall are coordinated.

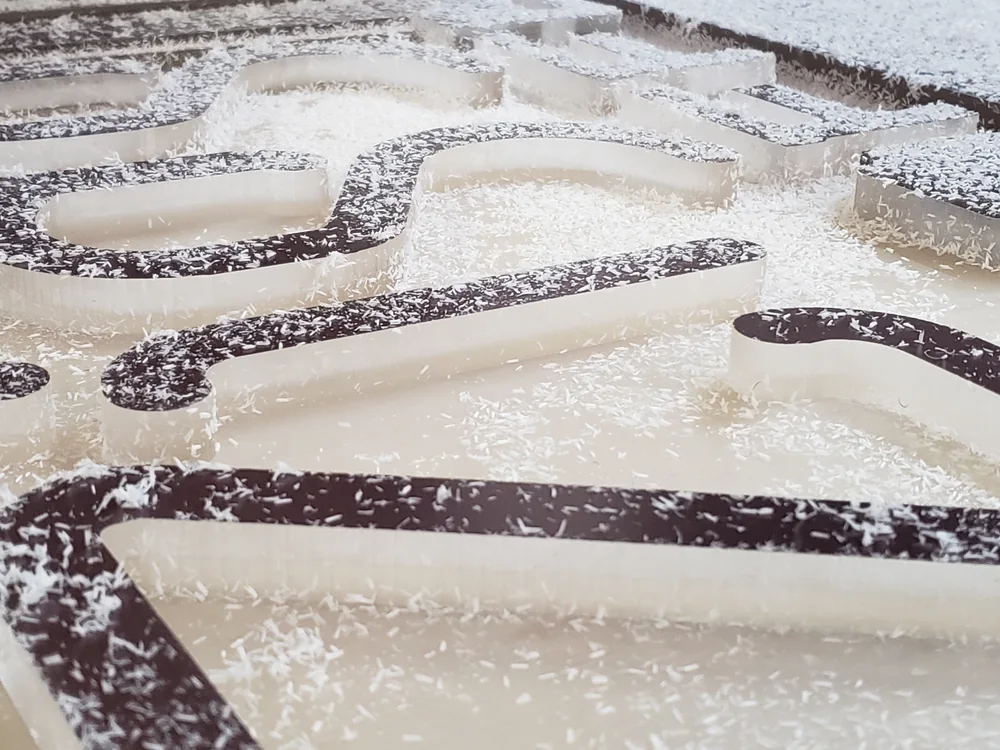

Machine the parts
The approved components are CNC routed or laser processed where appropriate, then cleaned and finished.
Build the layers
Paint, print, vinyl, edge finishing, backers, and multi-layer registration are completed in the correct sequence.
Install from a pattern
The pattern controls spacing while the crew drills, bonds, anchors, and aligns the complete assembly.
Final check
Faces, edges, shadows, reflections, hardware, and the overall visual line are reviewed in the room or on the building.
Price + timing
Acrylic pricing follows the number of operations—not just square footage.
- Letter count and overall size
- Sheet type and thickness
- Opaque, clear, frosted, painted, or printed finish
- Polished or machined edges
- Number of layers and registration complexity
- Small separate logo components
- Backer panels and stand-offs
- Studs, adhesives, and installation pattern
- Exterior exposure and access equipment
- Permit or landlord approval when required
Common questions
What acrylic letters can—and cannot—do.
What is the difference between cast and extruded acrylic?
Cast acrylic generally offers better optical quality, machining behavior, and dimensional stability for premium letter and logo work. Extruded acrylic can be appropriate for some straightforward applications. S2 chooses the sheet based on finish, thickness, machining, exposure, and budget rather than treating every acrylic sheet as interchangeable.
Can acrylic letters be used outside?
Yes, when the material, thickness, color method, mounting, and exposure are appropriate. Exterior acrylic needs allowances for temperature movement, UV exposure, wind, fasteners, and water. Some colors and printed treatments are better protected behind or within the material than exposed on the face.
Can clear acrylic look like glass?
Clear acrylic can create a glass-like layer at a lower weight and with more fabrication flexibility, but it reflects, scratches, and catches edge light differently from glass. Polished edges, frosting, stand-offs, and the wall color strongly affect the final appearance.
Can acrylic letters match a brand color?
Often. We can use pigmented sheet, translucent or opaque vinyl, paint, printed graphics, or layered components. Exact color strategy depends on whether the face, edge, back, and wall should all read the same way.
How thick should acrylic letters be?
Thickness is chosen around letter height, stroke width, desired edge presence, mounting hardware, potential warping, and viewing distance. Thin letters are visually quiet. Thicker or layered letters create stronger edge and shadow.
Can acrylic letters be illuminated?
Flat-cut acrylic can be combined with edge lighting, back lighting, a lit backer, or other sign-specific LED systems, but it is not automatically an internally illuminated channel letter. If the goal is a bright face or controlled halo, we compare it with push-thru and channel-letter options.
Will acrylic crack during installation?
Poor hole placement, over-tightened fasteners, unsupported thin strokes, and thermal movement can create stress. Proper stud placement, drilling, spacers, adhesives, and handling reduce that risk substantially.
Are acrylic letters less expensive than metal?
Sometimes, but not always. Thick cast acrylic, polished edges, layered logos, specialty colors, painting, and complicated mounting can cost more than a simple painted-aluminum letter set. The design and fabrication steps matter more than the category label alone.
Start with the basics
Show us the logo and the room or wall.
Acrylic is flexible enough that the environment usually determines the best treatment: clear or opaque, flat or layered, flush or stood off, mounted separately or on a backer.
- Logo file or business name
- Interior or exterior location
- Wall photo and approximate width
- Desired colors or transparency
- Target completion date
- Landlord criteria, if exterior
You do not need to identify the exact product before contacting us. The address, logo, deadline, and desired look are enough to begin.
A building photo, logo file, landlord sign criteria, and target date are helpful. After submitting, you may email files to hello@s2signs.com.
