Sign panels · substantial framed panels
MDO Plywood Signs for Framed Panels That Need Thickness and Fastener Holding
S2 produces and installs MDO plywood sign panels for commercial real estate, property identification, large framed signs, and custom post-and-panel systems.
MDO remains useful because it combines a smooth paper-overlay face with the thickness and fastener holding of plywood—especially where a thin composite panel would feel undersized or depend too heavily on the frame.
Where MDO fits
Use MDO when a framed panel needs more body than a thin sheet.

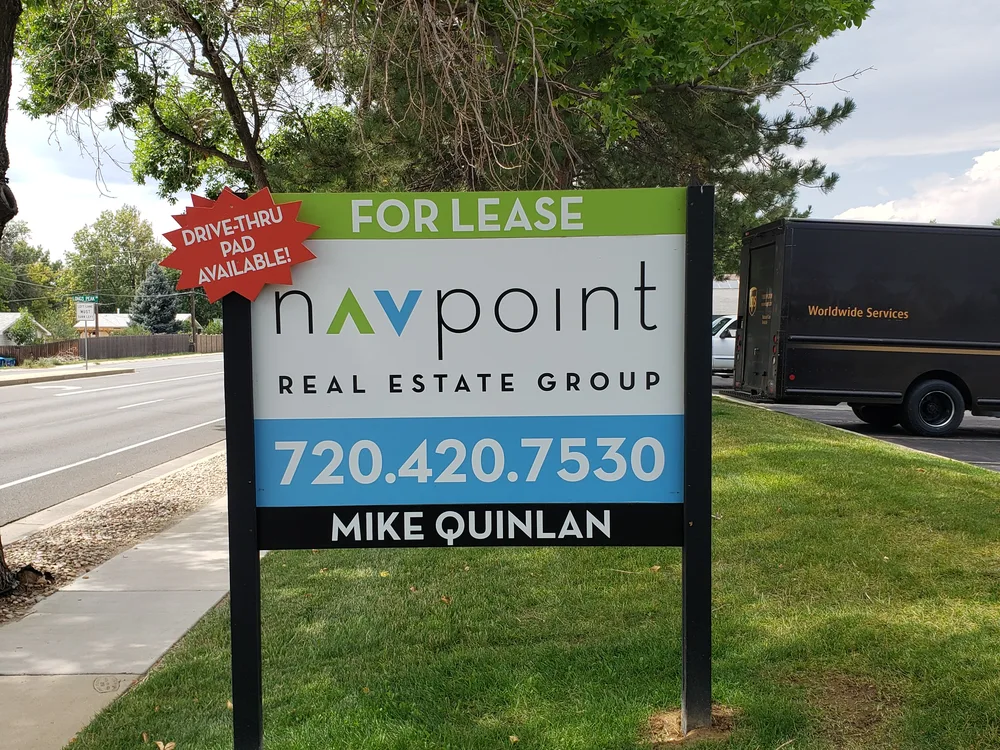

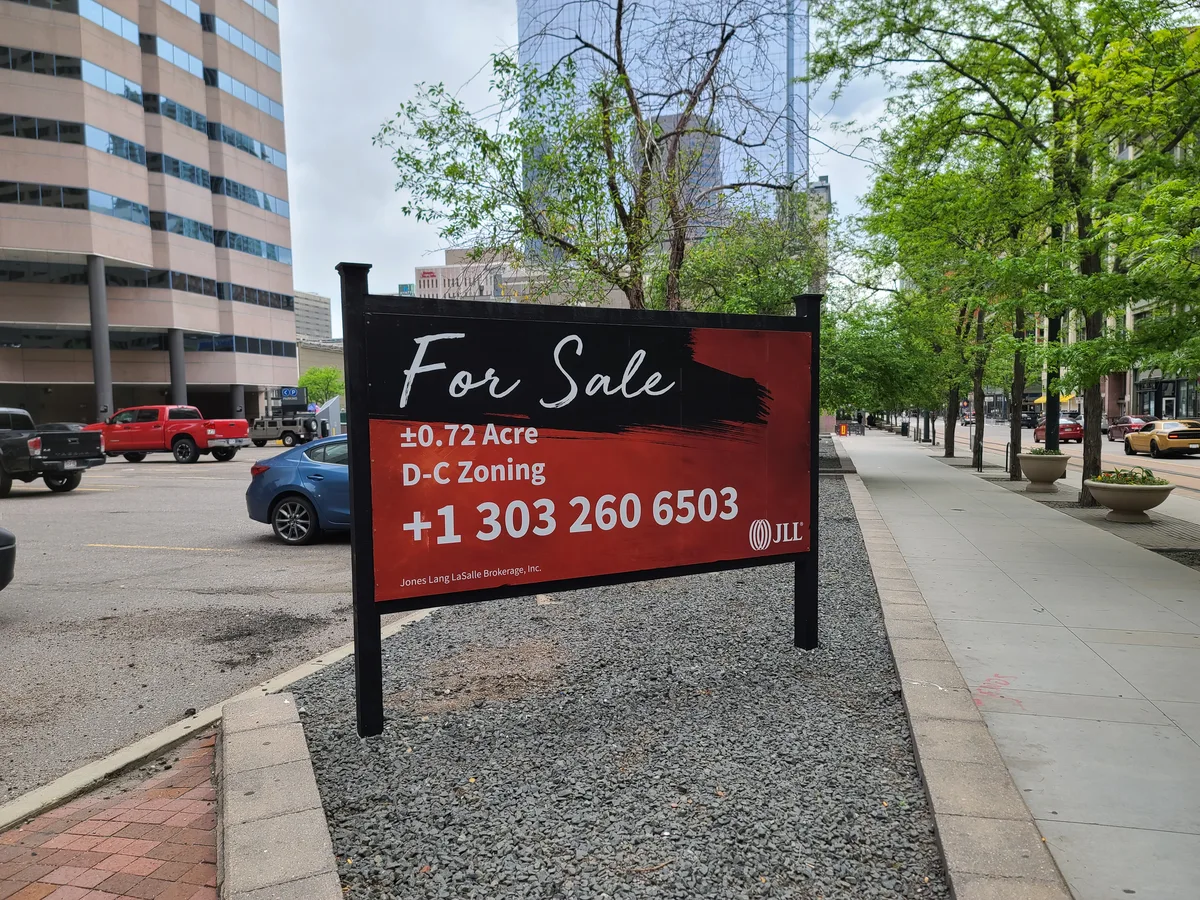

Commercial real estate signs, construction and development signs, property-identification panels, large framed graphics, and custom post-and-panel systems can all benefit from MDO’s thickness and fastener holding. The material feels substantial inside an open frame and tolerates certain mechanical attachments better than thin skins over a core.
The trade-off is wood-based construction. MDO is heavier than ACM, and water entering a cut edge or penetration can damage the panel over time. Good framing should shed water rather than hold it against the edge.
Overlay plywood
The face is smooth; the edge still reveals a plywood system.
The resin-treated overlay provides a uniform surface for paint or applied graphics. Beneath it, plywood veneers provide thickness and fastener holding. That construction means the face and edge have different weather needs.
Every cut, routed pocket, drilled hole, screw penetration, and damaged corner can become a moisture path. Edge coating, primer or paint where specified, compatible films, washers, frame drainage, and hardware layout are part of the panel—not optional cleanup.
Printed + laminated vinyl, cut vinyl, or paint
MDO resin-overlay face
Exterior plywood veneers
Back overlay / prepared reverse face
Frame, rails, posts, and mechanical support
Weather management
The frame should help the panel dry.
A well-finished face cannot compensate for a frame that traps water at the edge.
Sealed edges
Cut edges and routed areas are prepared so water does not enter exposed veneers.
Protected penetrations
Holes and fasteners need compatible coatings, washers, and enough edge distance.
Frame drainage
Retainers and rails should shed water rather than create a wet shelf under the panel.
Panel clearance
Small clearances can prevent constant edge contact and allow removal without destroying the finish.
Back-face exposure
The rear face needs its own finish and protection on double-sided or open-frame signs.
Inspection
Swelling, checking, soft edges, delamination, loose hardware, and frame movement should be addressed before re-facing.
Frames + posts
MDO is a panel component, not the footing or wind structure.
The posts, frame, rails, and connections determine how the panel handles field loads.
Wood post systems
Can create a traditional or economical structure when species, treatment, finish, connections, and grade are appropriate.
Welded metal frames
Provide repeatable openings, stronger edge retention, and reusable panel-change capability.
Single-post layouts
Require enough torsional control so wind does not twist the panel or support.
Double-post layouts
Distribute load and create a stable frame for wider commercial panels.
V-shaped systems
Present information toward two approaches but create additional wind and footing considerations.
Portable frames
Useful when permanent ground installation is unavailable; ballast and wind exposure still need attention.
Project process
The site and frame are measured before the panel is committed.
Define the use
Message, service life, size, viewing distance, change frequency, and property requirements are established.
Survey the site
Existing frames, posts, grade, wind, setbacks, utilities, and installation access are checked.
Specify construction
Panel thickness, face finish, edge coating, graphics, frame opening, and fasteners are documented.
Prepare artwork
Copy hierarchy, bleed, safe margin, seams, holes, and frame coverage are resolved.
Approve + permit
Landlord, brokerage, or municipal review is completed where required.
Produce + seal
The panel is cut, drilled, prepared, sealed, and finished before graphics are applied.

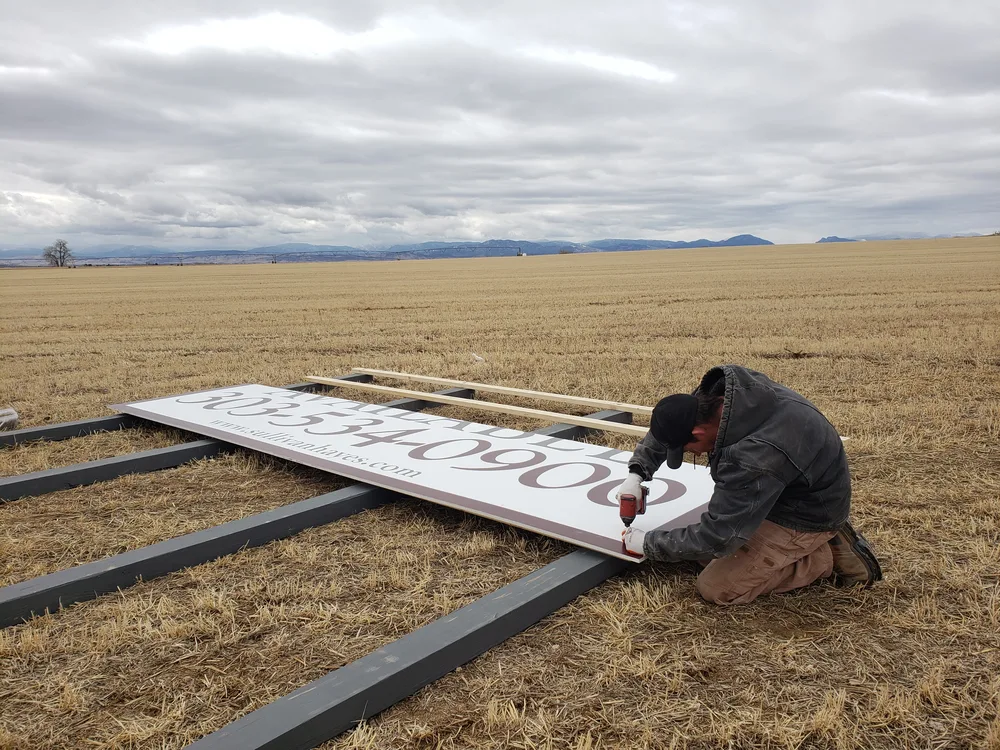

Frame + install
Posts, rails, retainers, and hardware are aligned; the panel is lifted and secured without damaging edges.
Inspect + document
Drainage, fasteners, flatness, graphic finish, and site appearance are checked.
Price + timing
The panel and frame should be quoted together.
- MDO grade, thickness, and panel dimensions
- Single- or double-sided finish
- Edge sealing, paint, and surface preparation
- Printed + laminated or cut-vinyl graphics
- Routing, holes, and custom shapes
- Wood or welded-metal frame
- Posts, brackets, retainers, and hardware
- Footings, utilities, grade, and access
- Permit or engineering requirements
- Removal and disposal of an old panel
Common questions
MDO overlay, edges, frames, and weather.
What does MDO mean?
MDO means medium-density overlay. It is an exterior plywood product with a resin-impregnated paper overlay that creates a smoother sign face than ordinary plywood.
Why use MDO instead of ACM?
MDO provides more thickness, fastener holding, and a substantial edge. It can suit larger framed post-and-panel signs and certain field conditions. ACM is lighter and does not rely on wood veneers, so it may be better where weight or moisture exposure dominates.
Does MDO need edge sealing?
Yes. The overlay protects the faces, but cut edges, drilled holes, routed areas, and damaged coatings can expose the plywood construction. Proper preparation and sealing reduce moisture entry.
Does S2 paint MDO signs?
The finish depends on the project. S2 commonly uses a prepared panel with printed and laminated vinyl graphics, while painted fields or edge coatings may be used where the construction calls for them.
Can MDO be used double sided?
Yes, provided both faces and all edges are prepared for exposure and the frame supports the panel. Double-sided systems must account for wind and access to fasteners.
Can an MDO panel be re-faced?
Sometimes. The panel must remain dry, flat, well sealed, and free from delamination, swelling, soft edges, and excessive old graphic buildup. A deteriorated panel should be replaced rather than cosmetically covered.
Is MDO permanent?
It is an exterior sign material, but “permanent” still depends on edge sealing, coating, frame drainage, post movement, sun, moisture, and maintenance. It is not immune to water simply because it is exterior plywood.
Do MDO post signs require permits?
Many permanent freestanding signs do. Temporary CRE signs may have separate allowances. S2 checks the address, dimensions, setbacks, sign area, and installation method before finalizing the scope.
Start with the basics
Send the frame and site photos.
We can compare MDO with ACM or aluminum after seeing the panel span, edge exposure, and fastening.
- Project address
- Existing frame or site photo
- Panel opening dimensions
- Single or double sided
- Logo or exact copy
- Target completion date
You do not need to identify the exact material or vinyl type before contacting us. The address, photos, goal, dimensions, and deadline are enough to begin.
