Face-lit LED channel letters

Front-lit channel letters for strong storefront visibility—without flattening the brand.

Front-lit channel letters are individually fabricated letters and logo shapes with translucent faces. LEDs inside the letters send light forward through those faces, keeping the business name readable during the day and after dark.

S2 designs the letter set around the building, viewing distance, logo, landlord criteria, sign code, wall construction, and electrical conditions—then handles permitting, fabrication, UL labeling, installation, and sign-side wiring from our Loveland shop.

Start a Front-Lit Project Compare Channel-Letter Styles

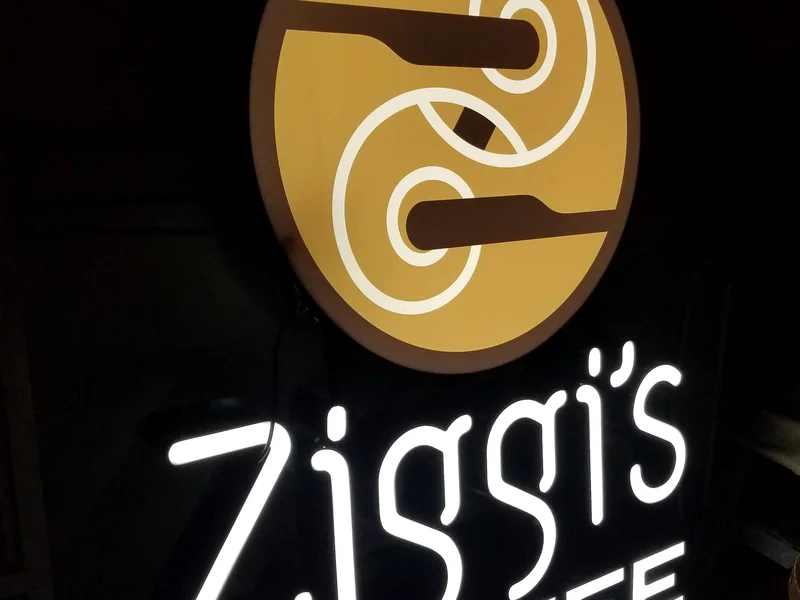

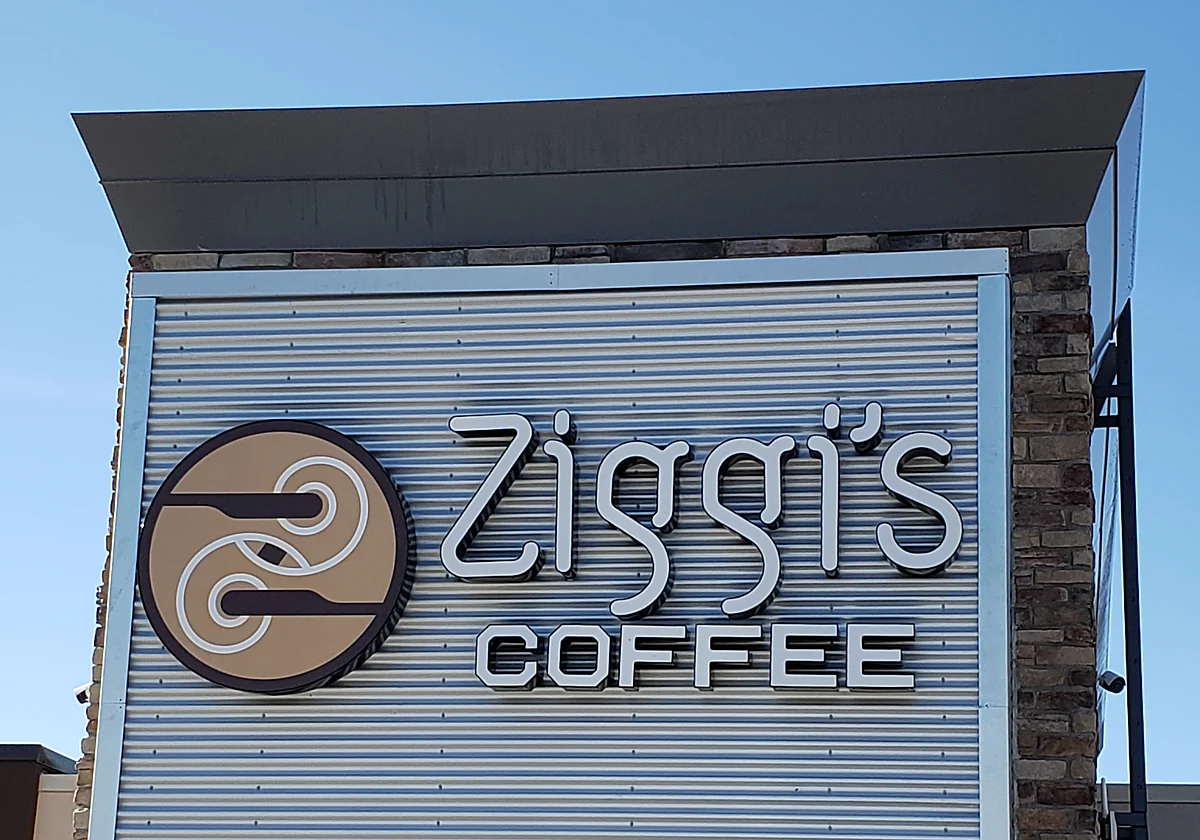

Ziggi’s Coffee in Hudson — designed, permitted, fabricated, and installed by S2.
High day-and-night readabilityTranslucent illuminated faces
Specialty face optionsIncluding black day / lit night effects
UL-labeled constructionBuilt and tested in Loveland
Permitting + installationCoordinated as one project

The storefront workhorse

Why are front-lit channel letters so common?

They solve the core storefront problem cleanly: the customer needs to identify a business from the parking lot or roadway, the name needs to retain its brand shape in daylight, and the same sign needs to remain readable after sunset. Because each letter is fabricated separately, the result feels more architectural than a flat printed panel while still delivering direct illumination.

Front-lit letters also adapt to a wide range of brands. The face can be white, colored, decorated with translucent vinyl, digitally printed for special effects, or treated with perforated day-and-night material. Returns and trim details can be painted to match the face, the building, or a contrasting brand color.

They are not automatically the right answer for every site. A detailed logo with small text may work better in a cabinet or push-thru sign. A professional building seeking a quieter nighttime effect may prefer halo-lit letters. The value of the front-lit option is not that it is universal—it is that it produces direct, efficient visibility when the design supports it.

Direct face illumination keeps the name readable without relying on light reflected from the wall.

The face controls the daytime and nighttime appearance

Front-lit does not mean every letter has to glow white.

The face system can preserve color, create a day-and-night change, separate illuminated and non-illuminated details, or simplify a complicated logo into something the customer can actually read from the street.

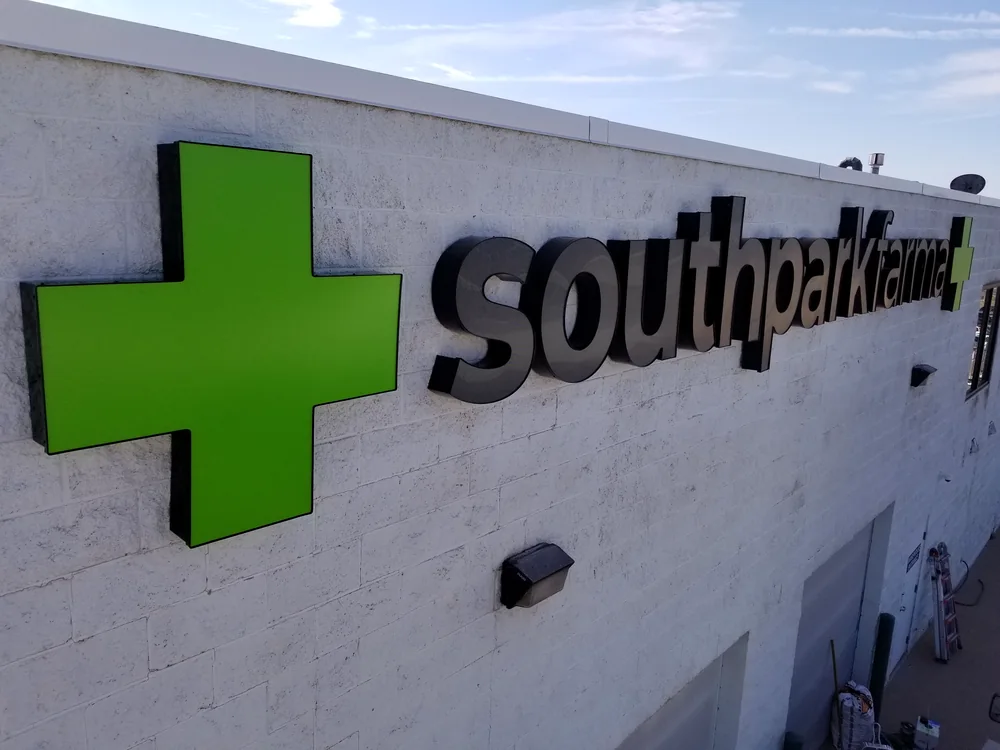

Black perforated faces. South Park Farma uses dark daytime faces while allowing the internal lighting to show through after dark.

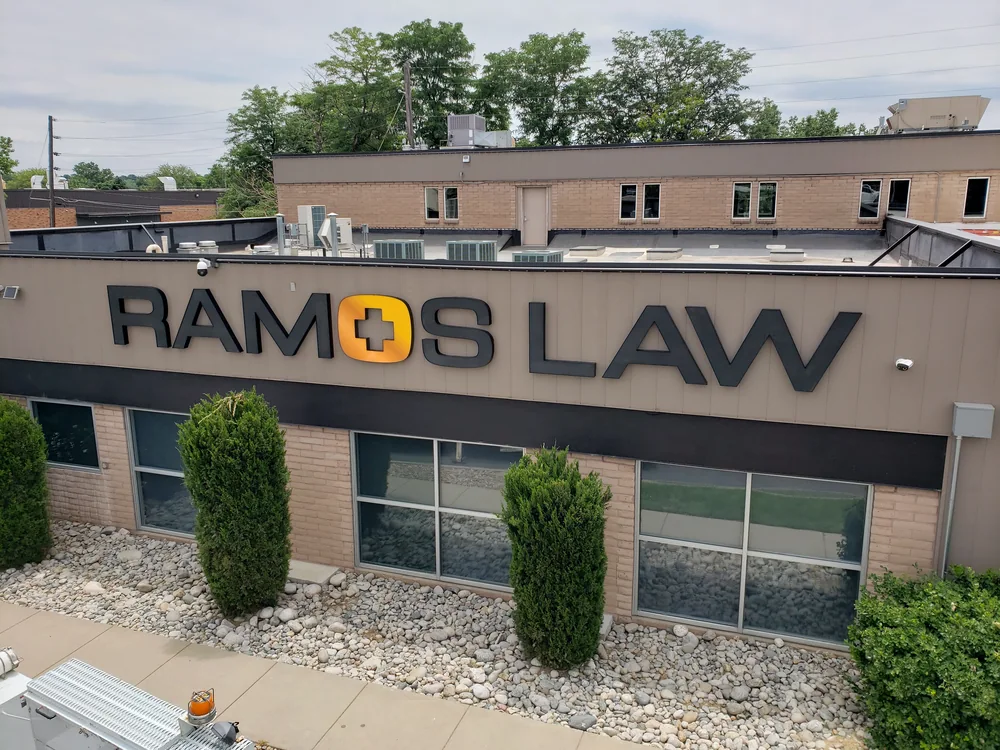

Day-and-night color change. The Ramos Law letters appear black during the day and illuminate white at night.

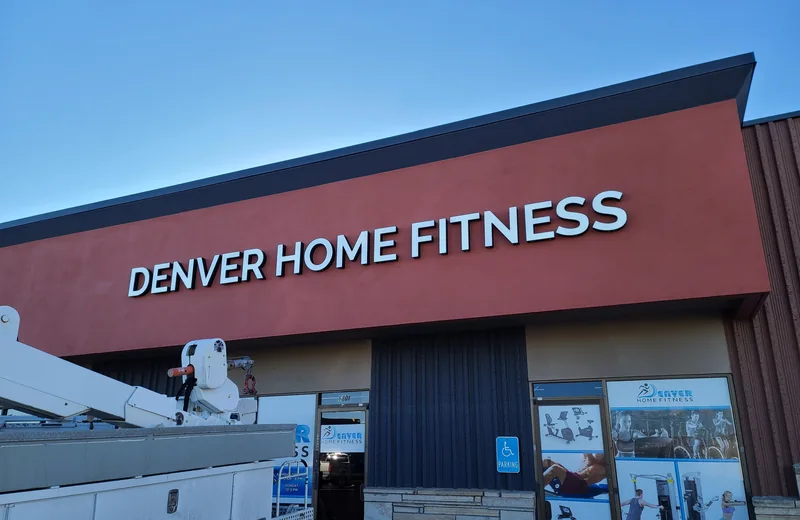

Brand-color faces. Denver Home Fitness combines illuminated red and white elements while keeping the sign easy to read as one composition.
Colored acrylic or translucent vinylUseful when the nighttime color should closely follow the brand color and the letter geometry supports even illumination.
White face with opaque graphicsAllows selected portions to light while other areas remain dark, which can simplify complex shapes and preserve contrast.
Perforated day-and-night filmCreates a darker daylight appearance while allowing the light source to become visible through the face after dark.
Printed translucent graphicsCan reproduce gradients or color changes, but the design must be evaluated for daytime color, nighttime transmission, and long-term exposure.
Trim cap and face retentionThe retention detail affects the visual edge, serviceability, color treatment, and how the face handles thermal movement and weather.
Mixed illuminated and opaque elementsLogos can use multiple constructions when one face treatment cannot create the intended day-and-night result by itself.

A day-and-night face is not a magic vinyl choice added at the end. Letter depth, stroke width, LED density, face material, perforation, viewing distance, and ambient light all influence whether the effect reads cleanly.

Designing for the street, not the computer screen

What makes front-lit letters readable?

A logo can look excellent at twelve inches wide on a monitor and fail completely when translated onto a building. Channel-letter design is the work of preserving the brand while correcting the parts that cannot survive fabrication, distance, weather, and night illumination.

Letter heightSize must match the available sign band, viewing distance, traffic speed, and local allowance—not merely the customer’s preferred number.
Stroke widthThin strokes leave too little room for LEDs, wiring, face retention, and uniform light. Some letterforms need to be thickened or enlarged.
SpacingLetters need enough separation to remain distinct after dark. Tight kerning that looks elegant in print can merge visually when illuminated.
Building contrastA red face on dark brick, a white face on pale stucco, or black returns against a black sign band each behave differently during the day.
Logo detailTiny counters, narrow outlines, fine registered marks, and small taglines may need another construction method or a deliberate simplification.
Nighttime balanceLED layout, face transmission, letter depth, and power distribution must produce consistent brightness without hot spots or dark ends.

The mounting method is part of the design

Direct mount, raceway, or backer?

All three can support front-lit letters. The correct choice depends on the wall, landlord criteria, wiring path, number of penetrations, service access, visual expectations, and budget.

Individually mounted

Each letter attaches directly to the building, usually creating the cleanest architectural result. Wiring and penetrations are distributed behind the letter set, so interior access and wall conditions matter.

Raceway mounted

The letters attach to one fabricated enclosure that carries much of the wiring and power equipment. A raceway can simplify installation and reduce wall penetrations, but it becomes a visible design element.

Backer mounted

A fabricated panel supports the letters as one sign assembly. Backers help bridge irregular siding, create contrast, comply with landlord criteria, or organize a logo that needs a defined field.

Mounting decisions should happen before the design is treated as final. A raceway added after approval can change the composition, color balance, scale, and landlord review.

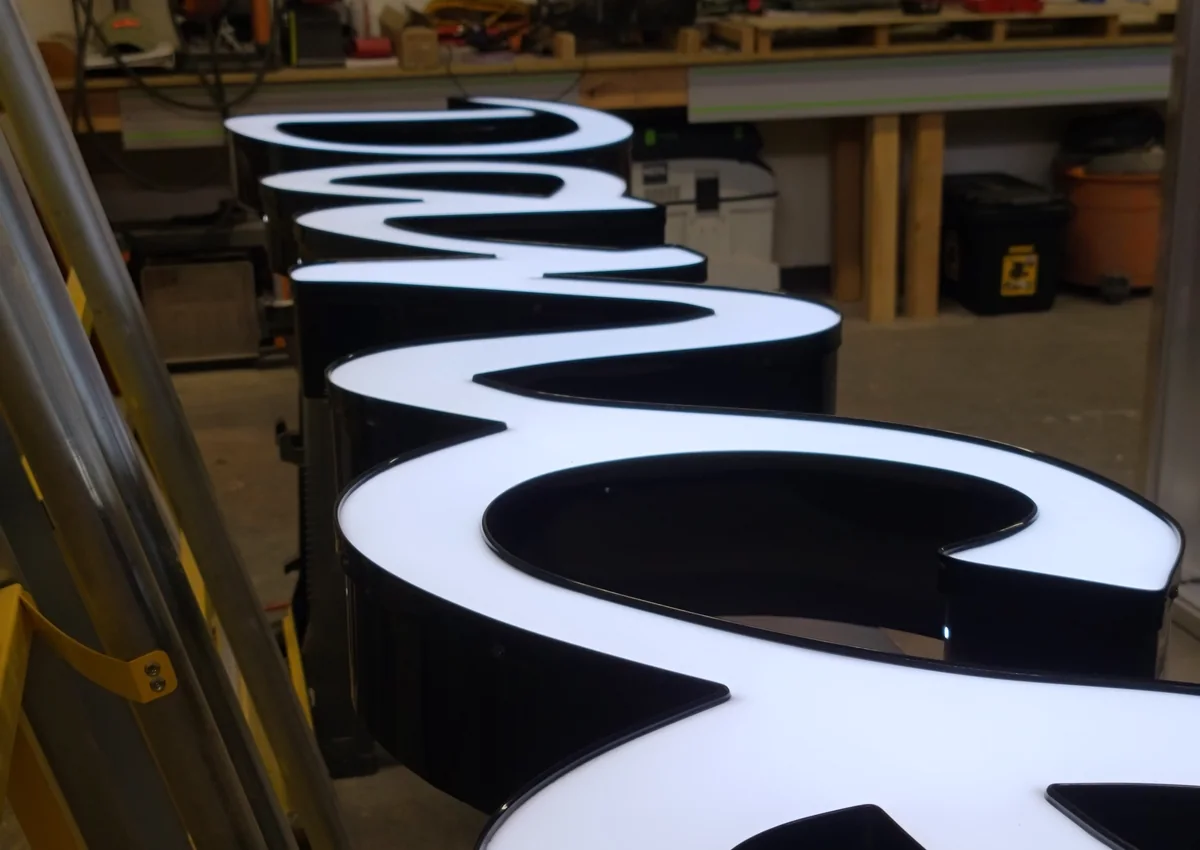

A front-lit letter set illuminated during shop testing before installation.

Inside the letters

How are front-lit channel letters constructed?

A typical front-lit letter uses a fabricated aluminum back and return, a translucent acrylic face, a face-retention system, LED modules, low-voltage wiring, and one or more power supplies sized for the connected load. The exact material gauges, depths, seams, mounting hardware, drainage, and service provisions vary with the size and project.

S2 is authorized to apply UL labels to qualifying electric signs. We use UL-listed components and follow the applicable construction and labeling processes. The letters are wired and illuminated in the shop so brightness, color, polarity, load, and obvious service problems can be addressed before installation.

  • Fabricated aluminum backs and returns
  • Acrylic faces selected for color and transmission
  • LED modules laid out for the actual letter geometry
  • Power supplies sized and located for service access
  • Drainage, wiring protection, and attachment details
  • UL labeling and shop illumination testing as applicable

From logo file to illuminated storefront

What does the front-lit channel-letter process look like?

The early decisions—size, stroke width, face treatment, mounting, power, and approvals—determine whether the finished sign looks intentional or merely luminous.

Address + logo

We begin with the project location, brand files, building photos, timing, landlord criteria, and budget range.

Site + code review

The available frontage, likely sign area, viewing direction, access, and municipal rules are reviewed before the concept hardens.

Field measurement

Wall dimensions, surface construction, power conditions, equipment access, and attachment details are verified.

Design translation

The logo is adjusted only where necessary for fabrication, illumination, spacing, readability, and approval.

Approval + permit

After scope and deposit, S2 develops the approval package, coordinates landlord review, and submits the sign permit.

Fabrication

Letters, faces, lighting, wiring, raceways or backers, and mounting patterns are produced in the Loveland shop.

Testing

The sign is illuminated, checked for even output, labeled as applicable, and prepared for installation.

Installation

S2 installs the letter set and coordinates a licensed electrician for branch power and final building connection when needed.

Price and schedule

What changes the cost of front-lit channel letters?

The quote is driven by the actual letter set and site. Two storefronts with the same total width may have very different fabrication hours, LED counts, faces, mounting patterns, and installation conditions.

  • Total number and size of letters
  • Stroke width and logo complexity
  • Face material and day/night treatment
  • Return depth, color, and finish
  • Direct mount, raceway, or backer
  • Wall type and interior access
  • Power-supply location and electrical readiness
  • Permit, landlord, and engineering requirements
  • Lift access, canopy conditions, and traffic control
  • Repair or removal of an existing sign

Real calendar, not a blanket promise

How long will the project take?

Front-lit letters are custom fabrication. Timing depends on customer decisions, landlord approval, permit review, material availability, shop scheduling, electrical readiness, installation access, and inspection requirements.

S2 provides a project-specific schedule once the address, scope, and approval path are known. The five-business-day CRE field-service window does not apply to custom channel-letter fabrication or permit-dependent installation.

The fastest way to get a useful first response is to send the project address, logo, a straight-on building photo, the desired opening date, and the landlord sign criteria if you have them.

Existing front-lit letters

Dark letters, damaged faces, and uneven illumination are often repairable.

Front-lit channel letters are serviceable assemblies. Failed power supplies, individual LED modules, wiring problems, damaged acrylic, loose trim, and aging fluorescent systems can often be corrected without replacing the entire letter set.

Channel-Letter Repair LED Retrofits

Helpful repair photos

Send one full-building photo, one close view of the failed area, and one nighttime image if the problem is illumination-related. Include the address and describe what changed.

Repair versus replacement

We evaluate the age and condition of the letter bodies, faces, wiring, lighting, mounting, and service access before recommending the practical path.

Front-lit channel-letter questions

Answers before the design begins.

These are the questions that usually determine whether front-lit letters fit the building and how the project should be constructed.

What are front-lit channel letters?

Front-lit channel letters are individually fabricated letters or logo shapes with translucent faces. LEDs inside each letter illuminate forward through the face, producing a bright, readable storefront sign after dark.

Are front-lit and face-lit channel letters the same thing?

Yes. The terms front-lit and face-lit are commonly used for the same construction: light is directed through the front face rather than primarily onto the wall behind the letter.

Can front-lit letters have black faces during the day?

Yes. Perforated day-and-night face treatments can appear dark or black in daylight while allowing the internal illumination to show through after dark. The face material, perforation, letter size, stroke width, LED layout, and viewing distance all affect the result.

Can any logo be made into front-lit channel letters?

Many can, but thin strokes, tiny counters, fragile details, and crowded shapes may need to be simplified or enlarged. S2 preserves the brand as closely as practical while making the letters buildable, evenly illuminated, weather-resistant, and serviceable.

Do front-lit channel letters need a raceway?

No. They can be individually mounted, mounted to a raceway, or installed on a fabricated backer. The wall construction, landlord criteria, wiring access, desired appearance, serviceability, and budget determine the best mounting method.

Who handles the permit and electrical connection?

S2 handles the sign permit, coordinates engineering when required, fabricates and UL labels the sign, completes the sign-side wiring, and installs the letters. A licensed electrician handles the branch circuit, breaker, and final connection to building power.

How large should storefront channel letters be?

The right size depends on viewing distance, traffic speed, available frontage, logo proportions, local sign-code limits, and landlord criteria. Letter height alone is not enough; stroke width, spacing, contrast, and the total sign area also control readability.

Can S2 repair existing front-lit channel letters?

Yes. S2 can diagnose dark letters, failed modules, failed power supplies, damaged acrylic faces, trim-cap problems, wiring issues, and uneven illumination. Many existing letter sets can be repaired, re-faced, or retrofitted without complete replacement.

Start a front-lit project

Send the address, logo, and building. We will help with the rest.

You do not need to know letter depth, LED module count, raceway size, or permit terminology before contacting S2. We need enough information to understand the site and the result you are trying to achieve.

  • Project address or city
  • Logo file or clear business name
  • Straight-on building photo
  • Landlord criteria, if available
  • Desired opening or installation date
  • Any preferred day-and-night face effect
