Front light + halo light
Combination-lit channel letters when one lighting effect is not enough.
Combination channel letters illuminate through the front face and cast light onto the wall behind the letter. They combine the direct readability of front-lit letters with the depth and architectural presence of a halo.
That extra effect also adds design and electrical complexity. Face brightness, halo strength, colors, wall surface, letter depth, standoff, mounting, power supplies, and service access all need to be balanced as one sign—not treated as two independent lighting systems.
Two proven systems in one letter
How do combination channel letters work?
The front of the letter uses a translucent face, much like a front-lit channel letter. The rear uses a translucent back or controlled opening, like a reverse-lit letter. Internal LEDs are arranged so light can travel in both directions without creating dark areas, uncontrolled hot spots, or an electrical system that is difficult to service.

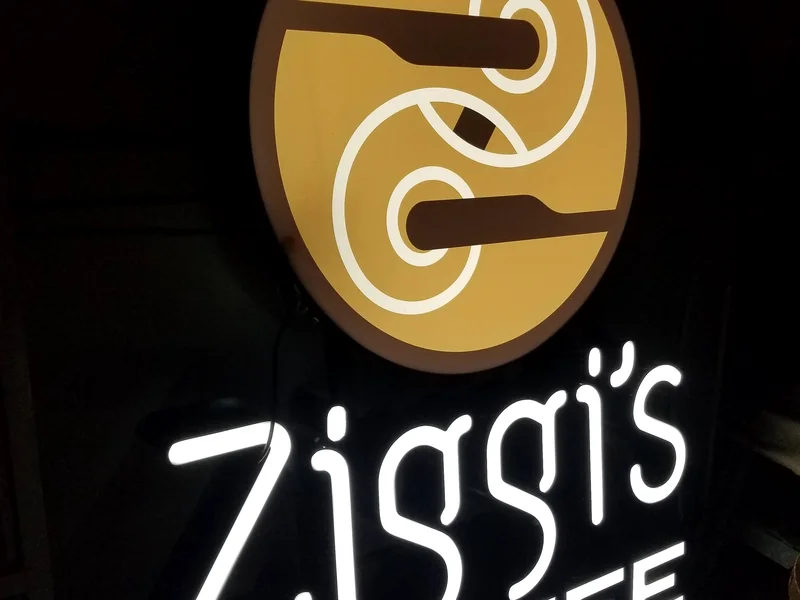

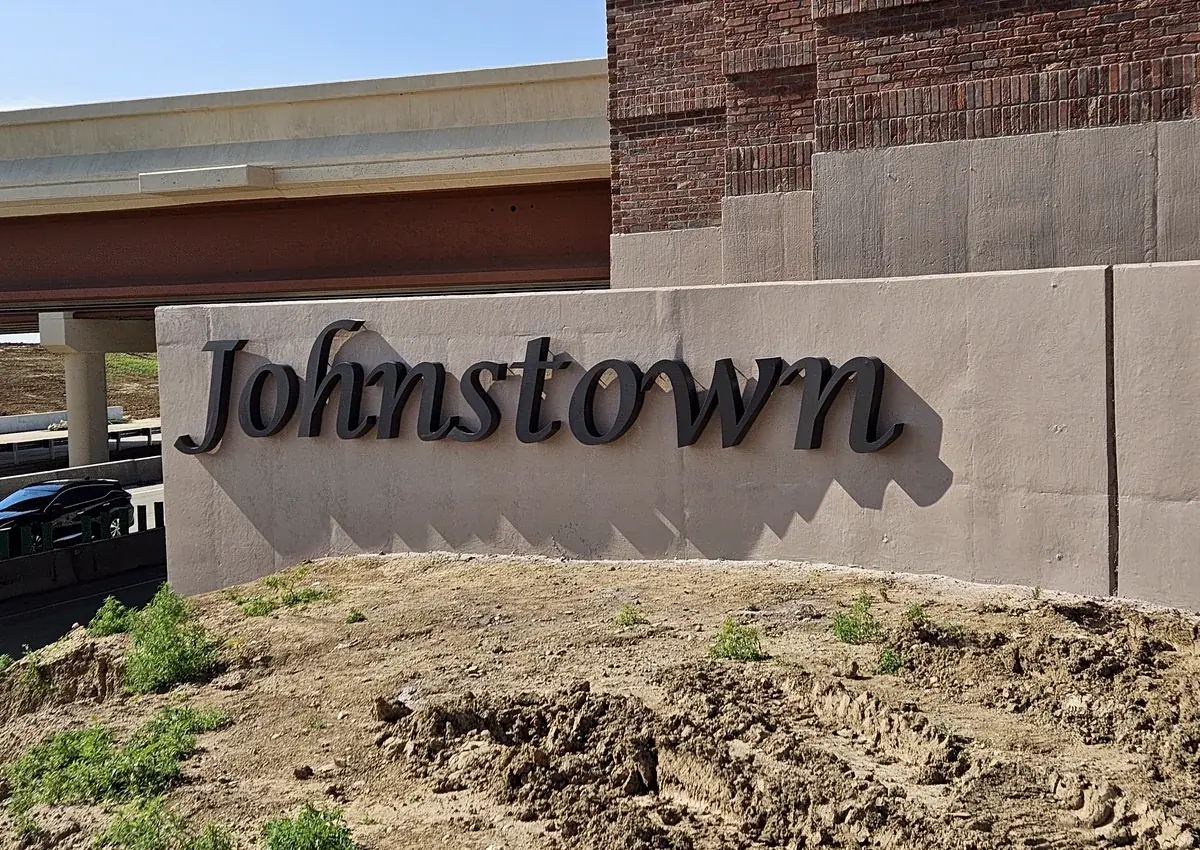

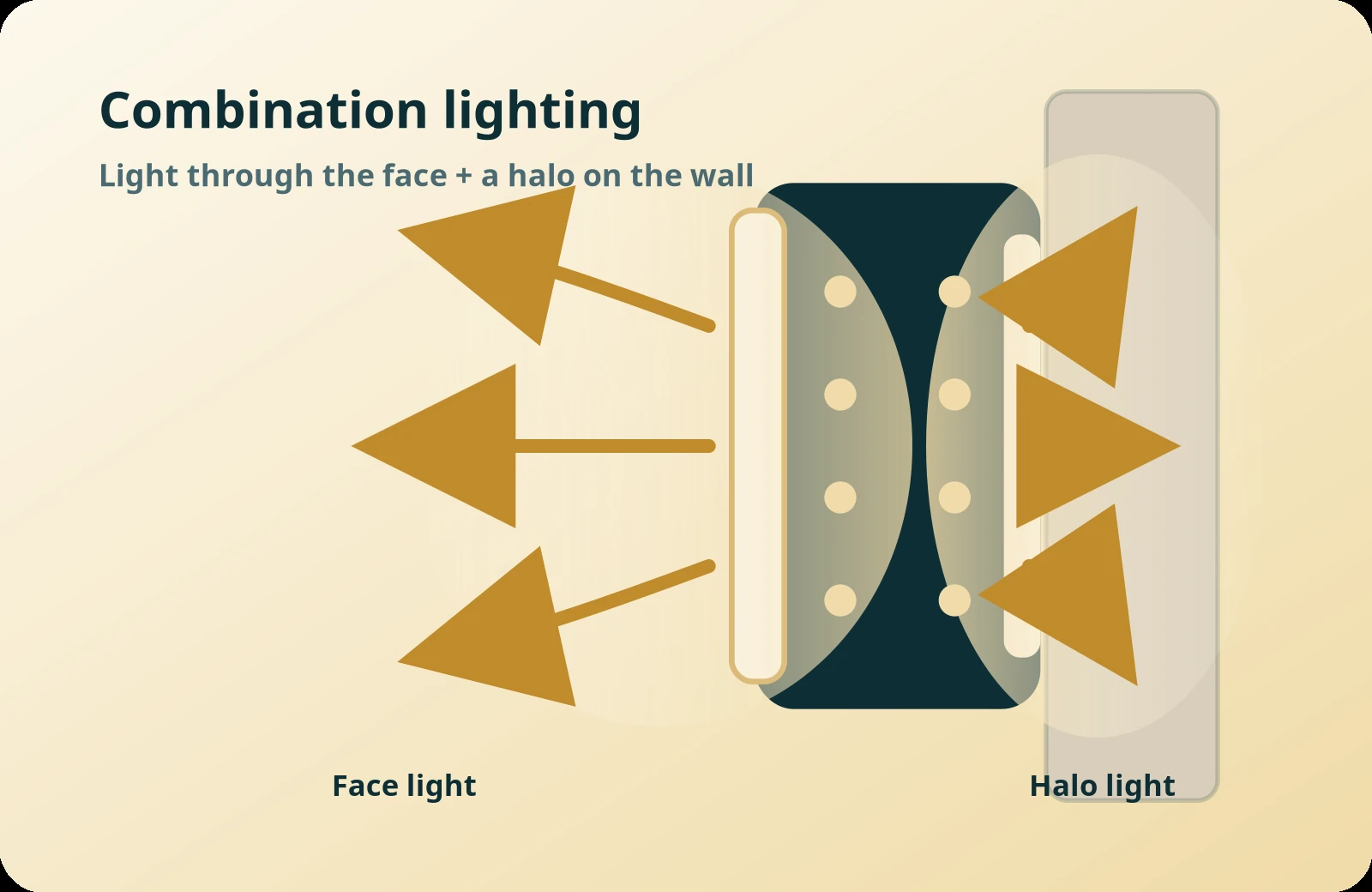

The images above are separate S2 front-lit and reverse-lit projects used to explain the two lighting directions. The technical illustration shows how those directions are combined inside one letter.
More light is not automatically better
The face and halo have to support each other.
A combination letter can fail visually even when every LED is working. If the face is much brighter than the halo, the reflected light disappears. If the halo is too strong or too saturated, it can muddy the letter edges and compete with the face. If the wall is dark or heavily textured, the rear lighting may add cost without adding much visible benefit.
The correct balance depends on the viewing distance, ambient light, face material, LED color, wall color, letter depth, standoff distance, stroke width, and how much of the sign is logo versus text. A large restaurant logo on pale stucco behaves differently from narrow professional-office letters on dark brick.
- Face transmission and front LED density
- Rear LED output and wall reflectance
- Letter depth and internal separation
- Standoff distance and halo spread
- Color temperature and brand-color accuracy
- Power-supply capacity and future service access
| Style | Primary strength | Main dependency |
|---|---|---|
| Front-lit | Direct readability and strong face color | Face design, letter geometry, and viewing distance |
| Halo-lit | Architectural depth and a quieter premium effect | Wall surface, standoff, and reflected light |
| Combination | Face visibility plus architectural backlighting | Balancing both systems and the wall together |
Combination lighting is worth considering when both effects have a real job. It should not be selected only because it has the longest feature list.
The face and halo can tell different parts of the brand story
What color combinations are possible?
The two light paths can use the same color or intentionally different colors. The right choice has to work in daylight, at night, against the actual wall, and within landlord and municipal illumination rules.
Colored LEDs and colored face materials do not produce identical color in every condition. Samples, component specifications, wall color, ambient lighting, and realistic expectations matter more than a glowing computer rendering.
The halo still needs somewhere to land
How do the wall and mounting method affect combination letters?
The front face will remain visible even when the wall is imperfect, but the value of the rear lighting depends on the surface behind it. Mounting decisions therefore have both structural and visual consequences.
Smooth, light walls
These provide the cleanest reflected-light field and make it easier to balance a visible halo with the front face.
Brick, stone, or ribbed metal
Texture breaks up the halo. That can create character, but the customer should see an honest rendering based on the actual surface.
Individual mounting
Often creates the cleanest result because each letter can cast light directly onto the building with minimal structure in the field.
Raceway mounting
A raceway can simplify wiring and penetrations, but it may block or receive the rear light. Its shape and finish become part of the nighttime design.
Fabricated backer
A backer can create a controlled halo surface on an unsuitable wall and organize the wiring, but it also changes the permitted sign area and overall composition.
Consistent standoffs
Uneven mounting distance changes halo width and brightness. The wall must be surveyed and the hardware planned for repeatable spacing.
Inside a combination letter
How is the construction different?
A combination letter generally needs a translucent front face, fabricated returns, a rear light-transmitting surface or opening, LED modules arranged for both directions, internal wire management, standoffs, mounting hardware, and power supplies sized for the total connected load.
The lighting may use separate module groups or carefully placed modules depending on the letter design and component system. Either way, the face and halo should be serviceable without turning every future repair into a complete sign removal.
S2 is authorized to apply UL labels to qualifying electric signs, uses UL-listed components, completes the sign-side electrical work, and shop-tests the lighting before installation. A licensed electrician handles the branch circuit, breaker, and final connection to building power.
- Translucent illuminated front faces
- Rear light-transmitting backs or openings
- LED layouts for two controlled directions
- Power supplies sized for the complete load
- Standoffs, patterns, wiring, and service access
- UL labeling and shop testing as applicable
A little more planning before fabrication
What does a combination-letter project involve?
The process follows the same project path as other channel letters, with added attention to the wall, color balance, connected load, and how the two lighting systems will be accessed later.
Address + brand
We begin with the site, logo, building photos, landlord criteria, lighting goals, timing, and budget.
Wall + visibility review
Viewing distance, ambient light, surface color and texture, sign area, and local illumination limits are reviewed.
Field survey
Measurements, wall construction, access, power location, attachment, standoff conditions, and obstructions are verified.
Effect development
Face color, halo color, brightness relationship, letter depth, mounting, and daytime finish are developed together.
Approval + permit
After scope and deposit, S2 coordinates customer and landlord approval and submits the sign permit.
Fabrication
Letter bodies, faces, backs, LEDs, wiring, standoffs, patterns, raceways or backers are built in Loveland.
Shop test
Both lighting directions, electrical load, color, backs, labels, and mounting components are inspected.
Installation
S2 installs the letters and coordinates licensed branch-power work and final inspection when required.
Price factors
Why do combination letters cost more?
The letter has more illuminated surfaces, more internal planning, more components, more wiring, more connected load, and tighter mounting requirements. The site may also need a backer or additional electrical capacity to make the halo useful.
- Number, size, depth, and complexity of letters
- Front-face material and graphics
- Rear back construction and halo color
- Two-direction LED layout and power supplies
- Individual mount, raceway, or backer
- Wall color, texture, and structural condition
- Electrical circuit readiness and electrician scope
- Permit, landlord, and engineering requirements
- Lift, crane, traffic control, and site access
- Service access and long-term maintenance planning
When the simpler option wins
Combination lighting should earn its place.
If the storefront needs maximum readability, larger front-lit letters may provide more value than adding a halo. If the architecture and wall are the main story, a properly designed reverse-lit set may look cleaner than an illuminated face and halo together.
S2 will compare the options honestly. The goal is not to add components; it is to produce the strongest sign for the building, budget, and long-term ownership.
A useful first review includes the address, logo, straight-on wall photo, wider approach photo, desired face and halo colors, landlord criteria, and realistic budget range.
Service after installation
Two lighting directions mean the repair diagnosis must separate the systems.
A combination letter may have a face-lighting problem, a halo-lighting problem, or a shared power and wiring problem. A useful diagnosis identifies which effect failed, whether the issue is isolated to one letter, and whether prior repairs changed the original LED layout.
Face dark, halo working
Possible causes include failed front modules, wiring, face-side connections, or a power-supply circuit serving the front illumination.
Halo dark, face working
Rear modules, backs, wiring, power distribution, or a failed rear-lighting supply may be responsible.
Both effects irregular
Shared power, water intrusion, overloaded or failing supplies, wiring damage, or inconsistent prior repairs may affect the complete letter.
Combination channel-letter questions
Answers before choosing both light paths.
These questions help determine whether the additional illumination will improve the sign or merely add complexity.
What are combination-lit channel letters?
Combination-lit channel letters use two lighting directions in the same letter: light through a translucent front face and light from the back onto the wall. The result combines direct face visibility with a reflected halo.
Are combination-lit letters always brighter than front-lit letters?
They produce more total light effects, but brightness is not the same as readability. Face transmission, halo strength, wall color, viewing distance, ambient light, letter size, and color choices must be balanced so one effect does not overpower the other.
Can the face and halo be different colors?
Yes. The face and rear lighting can use different colors, including white face light with a colored halo or colored face light with a white halo. Color choice affects brightness, brand accuracy, wall appearance, code compliance, and long-term service considerations.
What wall surfaces work with combination lighting?
The front-lit face remains visible on almost any appropriate wall, but the halo still depends on the wall surface. Smooth, light-colored surfaces create the cleanest halo; dark, textured, ribbed, or reflective surfaces change the effect and may make the additional rear lighting less valuable.
Do combination letters require more power and service planning?
Usually, yes. Two lighting systems can mean more LED modules, more wiring, higher connected load, additional power-supply capacity, and more service points. The system should be planned as one electrical assembly rather than two independent lighting ideas.
Can combination-lit letters be mounted on a raceway?
Yes, but the raceway becomes part of the reflected-light background and may interrupt the halo. Individual mounting often produces the cleanest effect, while a carefully designed backer can create a controlled surface when the original wall is unsuitable.
Does S2 handle the permit and final electrical coordination?
S2 handles the sign permit, coordinates engineering when required, fabricates and UL labels the sign, completes the sign-side wiring, and installs the letters. A licensed electrician handles the branch circuit, breaker, and final connection to building power.
When should I choose combination lighting instead of front-lit or halo-lit?
Choose it when the brand and building genuinely benefit from both strong face readability and architectural backlighting. It is not a default upgrade; on some sites, larger front-lit letters or well-designed halo-lit letters will perform better for the available budget.
Start a combination-lit project
Tell us what each lighting effect is supposed to accomplish.
We will compare combination lighting against front-lit and halo-lit alternatives using the actual wall, viewing conditions, logo, approvals, budget, and service requirements.
- Project address or city
- Logo file or business name
- Close and wide wall photos
- Preferred face and halo colors
- Landlord sign criteria, if available
- Desired installation date and budget range
